Madone SLR 9 Gen 7

Features

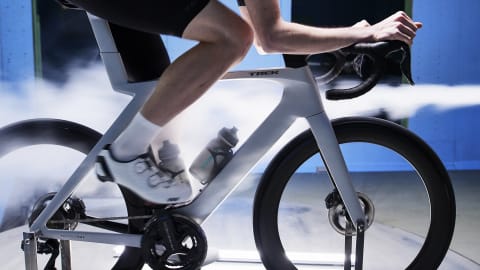

Unprecedented aerodynamics

All-new aerodynamic Kammtail frame shapes, bar/stem design, and rider position make Madone SLR our fastest road race bike yet.

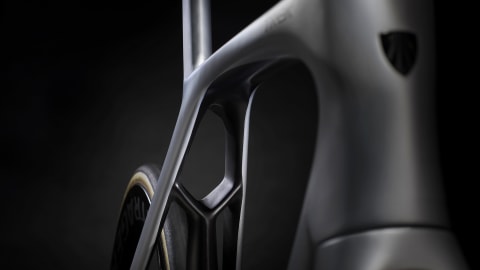

Exclusive IsoFlow technology

Never before seen IsoFlow technology specifically designed for the 7th generation Madone SLR shaves weight, improves aerodynamics, and smooths your ride.

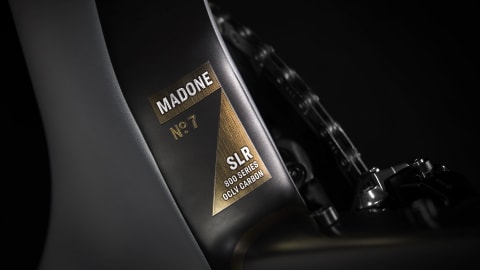

Our lightest Madone disc ever

Super lightweight 800 Series OCLV Carbon and a new lightweight design make this our lightest Madone disc ever.

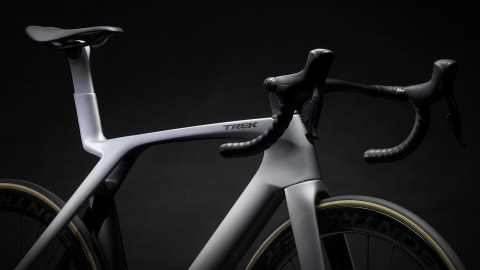

New ergonomic bar/stem

A newly optimized bar/stem that’s 3cm narrower in the hoods than the drops offers a more comfortable and ergonomic riding position for faster racing, improved aerodynamics, and ultimate control. Use the same bar/stem size you’re used to – if you normally ride with a 42cm bar/stem, opt for 42cm in the drops and 39cm in the hoods.

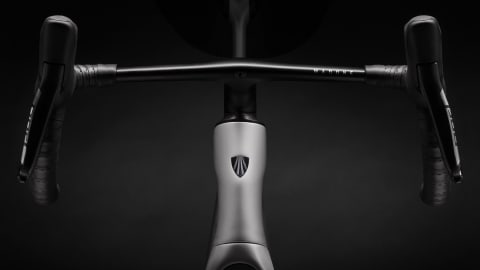

Refined integration

Every element of this bike is part of a greater whole. It has invisible cable routing, aero cockpit, hidden seatmast, and more.

Shimano Dura-Ace Di2

The pinnacle of Shimano road technology and innovation, the new 12 speed Dura-Ace Di2 R9200 is Shimano's fastest ever. Speed was the driving force behind this next-generation road group.That’s why every component was refined, designed, and fine-tuned to make you faster – whether you’re sprinting to the finish on the Champs-Elysees or crushing your local climb.

Specs

Frame	800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
Fork	Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Frame fit	H1.5 Race

Weight	54 - 7.10 kg / 15.66 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Battery	Shimano BT-DN300
Charger	Charging cable included

Shifter	Shimano Dura-Ace R9270 Di2, 12 speed
Front derailleur	Shimano Dura-Ace R9250 Di2, braze-on, down swing
Rear derailleur	Shimano Dura-Ace R9250 Di2, 34T max cog
*Crank	Size:47 Shimano Dura-Ace R9200, 52/36, 165mm length
	Size:50, 52 Shimano Dura-Ace R9200, 52/36, 170mm length
	Size:54, 56, 58 Shimano Dura-Ace R9200, 52/36, 172.5mm length
	Size:60, 62 Shimano Dura-Ace R9200, 52/36, 175mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano Dura-Ace R9200, 11-30, 12 speed
Chain	Shimano Dura-Ace/XTR M9100, 12 speed
Max chainring size	1x: 50T, 2x: 54/40

Wheel front	Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle
Wheel rear	Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, Shimano 11/12 freehub, 142x12mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Skewer rear	Bontrager Switch thru axle, removable lever
Tire	Bontrager R4 320, 700x25mm
Max tire size	32mm (as measured, see manual for details)

*Saddle	Size:47, 50, 52 Aeolus RSL, carbon rails, 155mm width
	Size:54, 56, 58, 60, 62 Aeolus RSL, carbon rails, 145mm width
*Seatpost	Size:47, 50, 52, 54 Madone aero carbon seatpost, 0mm offset, short length
	Size:56, 58, 60, 62 Madone aero carbon seatpost, 0mm offset, long length
*Handlebar/stem (integrated)	Size:47 Madone Integrated handlebar/stem, OCLV Carbon, 80mm reach, 124mm drop, 35cm control width, 38cm drop width, 80mm stem length
	Size:50, 52 Madone Integrated handlebar/stem, OCLV Carbon, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 90mm stem length
	Size:54 Madone Integrated handlebar/stem, OCLV Carbon, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length
	Size:56, 58 Madone Integrated handlebar/stem, OCLV Carbon, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 100mm stem length
	Size:60, 62 Madone Integrated handlear/stem, OCLV Carbon, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length
Handlebar tape	Bontrager Supertack Perf tape
Brake	Shimano Dura-Ace hydraulic disc, flat mount
*Brake rotor	Size:47, 50, 52, 54, 56, 58, 60, 62 Shimano MT900, centerlock, 160mm
	Size:47, 50, 52, 54, 56, 58, 60, 62 Shimano CL900, centerlock, 160mm
Rotor size	Max brake rotor sizes: 160mm front & rear
