Madone SL Disc Gen 6 Frameset

1480.00
9120.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Features

          Race-winning aerodynamics

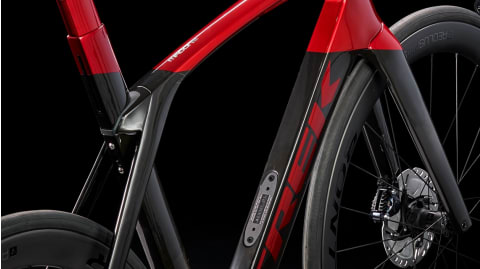

          On the road and in the wind tunnel, Madone’s exclusive Kammtail Virtual Foil tube shape ranks among the most aero in the world.

          Specs

          Frame 500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, Duo Trap S compatible, 142x12mm thru axle
          Fork Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle
          Frame fit H1.5 Race
          Weight 56 - 2.12 kg / 4.68 lbs
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
          Front derailleur Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs)
          Max chainring size 1x: 50T, 2x: 54/40
          Skewer front Bontrager Switch thru axle, removable lever
          Skewer rear Bontrager Switch thru axle, removable lever
          Max tire size 28mm
          Rotor size Max brake rotor sizes: 160mm front & rear
