Madone SL 6 Gen 7

1480.00
13200.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Features

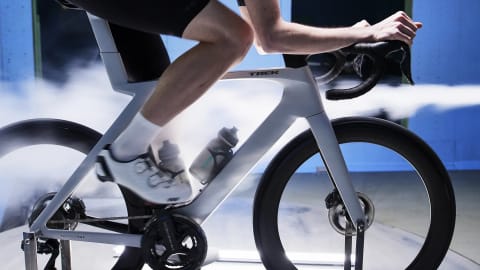

          Unprecedented aerodynamics

          Our newest generation of aerodynamic Kammtail frame shapes, aero cockpit design, and rider position make the 7th generation Madone SL our fastest yet.

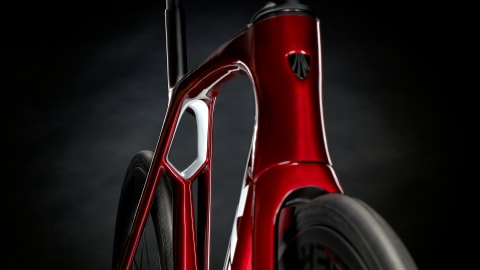

          Exclusive IsoFlow technology

          IsoFlow technology specifically designed for the 7th generation Madone shaves weight, improves aerodynamics, and smooths bumps in the road for a more comfortable ride.

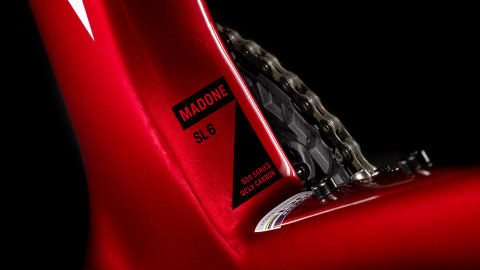

          Our lightest Madone SL ever

          Lightweight 500 Series OCLV Carbon and a newly optimized design make this the lightest Madone SL ever.

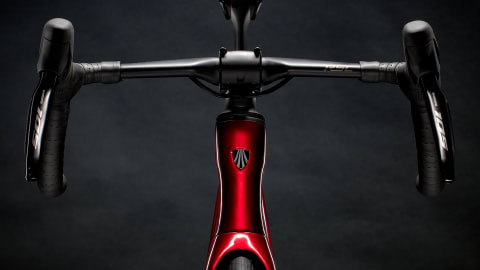

          New ergonomic handlebar

          A newly optimized handlebar that’s 3cm narrower in the hoods than the drops offers a more comfortable and ergonomic riding position for faster racing, improved aerodynamics, and ultimate control. Use the same handlebar size you’re used to — if you normally ride with a 42cm bar/stem, opt for 42cm in the drops and 39cm in the hoods.

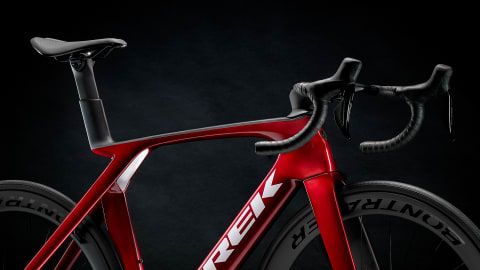

          Refined integration

          Every inch of Madone was designed for ultimate speed and efficiency — including internal cable routing, an aerodynamic cockpit, a hidden seatmast, and more.

          Shimano 105 Di2

          With a shared Di2 platform inherited from Dura-Ace and Ultegra, sophisticated ergonomics, Shimano 105-optimized gear combinations, and an exceptional hydraulic disc brake system, Shimano 105 Di2 R7100 marks a new era of affordable, 12 speed electronic performance. You can set up the drivetrain just the way you like it via Shimano’s user-friendly E-Tube app.

          Specs

          Frame 500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
          Fork Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
          Weight 56 - 8.40 kg / 18.52 lbs
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
          Shifter Shimano 105 R7170 Di2, 12 speed
          Front derailleur Shimano 105 R7150 Di2, braze-on, down swing
          Rear derailleur Shimano R7150 Di2, 36T max cog
          *Crank Size:47
          Shimano 105 R7100, 50/34, 165mm length
          Size:50, 52
          Shimano 105 R7100, 50/34, 170mm length
          Size:54, 56
          Shimano 105 R7100, 50/34, 172.5mm length
          Size:58, 60, 62
          Shimano 105 R7100, 50/34, 175mm length
          Bottom bracket Praxis, T47 threaded, internal bearing
          Cassette Shimano 105 7101, 11-34, 12 speed
          Chain Shimano SLX M7100, 12 speed
          Max chainring size 1x: 50T, 2x: 54/40
          Wheel front Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
          Wheel rear Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim depth, Shimano 11 speed freehub, 142x12mm thru axle
          Skewer front Bontrager Switch thru axle, removable lever
          Skewer rear Bontrager Switch thru axle, removable lever
          Tire Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25mm
          Max tire size 32mm (as measured, see manual for details)
          *Saddle Size:47, 50, 52
          Bontrager Aeolus Comp, steel rails, 155mm width
          Size:54, 56, 58, 60, 62
          Bontrager Aeolus Comp, steel rails, 145mm width
          *Seatpost Size:47, 50, 52, 54
          Madone aero carbon seatpost, 0mm offset, short length
          Size:56, 58, 60, 62
          Madone aero carbon seatpost, 0mm offset, long length
          *Handlebar Size:47
          Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 35cm control width, 38cm drop width
          Size:50, 52
          Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 37cm control width, 40cm drop width
          Size:54, 56
          Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 42cm width
          Size:58, 60, 62
          Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 41cm control width, 44cm drop width
          Handlebar tape Bontrager Supertack Perf tape
          *Stem Size:47
          Trek RCS Pro, -7 degree, 70mm length
          Size:50
          Trek RCS Pro, -7 degree, 80mm length
          Size:52, 54
          Trek RCS Pro, -7 degree, 90mm length
          Size:56, 58
          Trek RCS Pro, -7 degree, 100mm length
          Size:60, 62
          Trek RCS Pro, -7 degree, 110mm length
          Brake Shimano 105 hydraulic disc, flat mount
          Brake rotor Shimano RT70, centerlock, 160mm
          Rotor size Max brake rotor sizes: 160mm front & rear
