Features

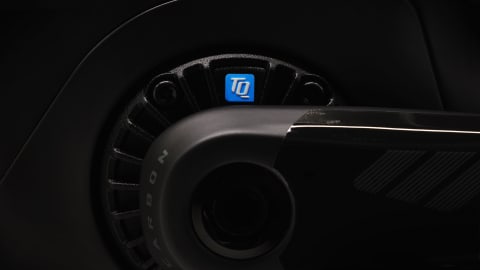

Compact, quiet, and mighty e-system
The TQ harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio. It's ultra-compact, whisper-quiet, and offers an unbelievably natural-feeling assist up to 28 mph.
Ultra-lightweight

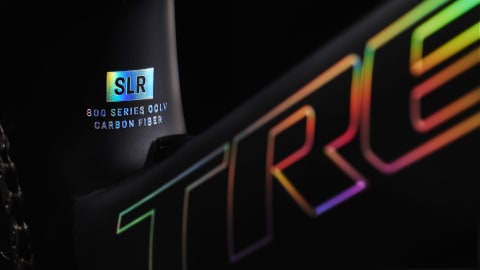

Domane+ SLR is our lightest e-bike ever, weighing only ~26 pounds thanks to our best and lightest 800 Series OCLV Carbon and a smart frame designed to shave weight.
Designed to go the distance
An integrated 360Wh battery is hidden in the downtube and offers an impressive range of around 60 miles in Eco mode.

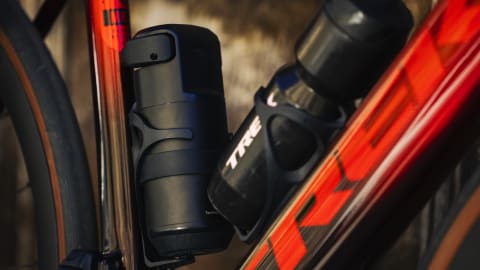

Optional Range Extender
Explore farther with an optional 160Wh Range Extender that gives you an extended total range of around 90 miles in Eco mode. Want even more miles? The Trek Connect App lets you customize your assist to extend your range even more.

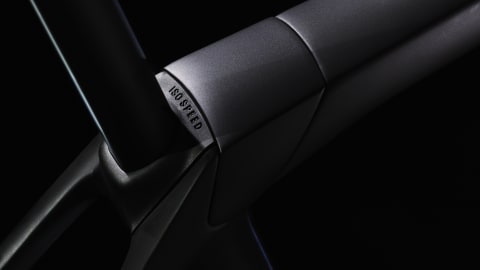

The smooth advantage
Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger longer.

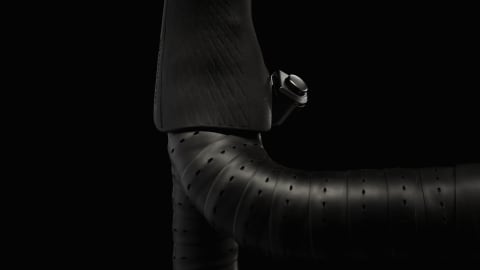

Real road feel
A road-specific tune, narrow Q factor, and intuitive mode change buttons on the hoods make Domane+ SLR feel and handle like a traditional bike with the added benefits of electric.

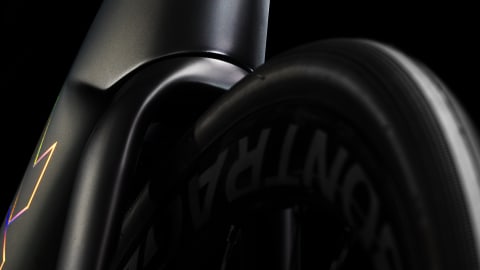

All-road versatility
This Domane+ SLR comes with 32mm smooth tires that roll fast on paved roads, but has clearance for up to 40mm tires to enjoy every road, from smooth tarmac to gravel.
Shimano Dura-Ace Di2
The pinnacle of Shimano road technology and innovation, the new 12 speed Dura-Ace Di2 R9200 is Shimano's fastest ever. Speed was the driving force behind this next-generation road group.That’s why every component was refined, designed, and fine-tuned to make you faster – whether you’re sprinting to the finish on the Champs-Elysees or crushing your local climb.

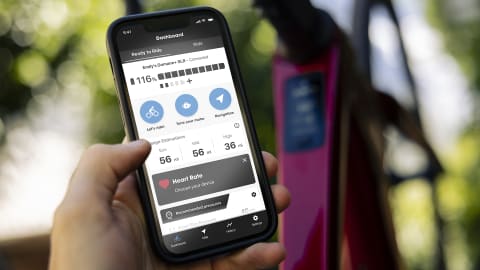

Connect, customize, calculate
The Trek Central app seamlessly connects to your Domane+ for real-time range calculations, activity tracking, and custom motor tuning. Plus, navigation and mapping features help you stay on course wherever you ride.
Specs
Frame
800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle
Fork
Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Frame fit
Endurance
Weight
56 - 11.75 kg / 25.91 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
*Battery
Size:50, 52, 54, 56, 58, 60, 62
Shimano BT-DN300
Size:50, 52, 54, 56, 58, 60, 62
TQ 360Wh
Charger
Charging cable included
Computer
TQ LED display with Bluetooth & ANT+ connectivity
Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Shifter
Shimano Dura-Ace R9270 Di2, 12 speed
Front derailleur
Shimano Dura-Ace R9250 Di2, braze-on, down swing
Rear derailleur
Shimano Dura-Ace R9250 Di2, 34T max cog
*Crank
Size:50, 52
Praxis Carbon, 170mm length
Size:54, 56
Praxis Carbon, 172.5mm length
Size:58, 60, 62
Praxis Carbon, 175mm length
Chainring
Praxis, 50/34T, 12 speed
Cassette
Shimano Dura-Ace R9200, 11-34, 12 speed
Chain
Shimano Dura-Ace/XTR M9100, 12 speed
Max chainring size
1x: 46T, 2x: 52/36
Wheel front
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
Wheel rear
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Skewer front
Bontrager Switch thru axle, removable lever
Skewer rear
Bontrager Switch thru axle, removable lever
Tire
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm
Tire part
Bontragr TLR sealant, 6oz
Rim strip
Bontrager TLR
Max tire size
40mm without fenders, 35mm with fenders
*Saddle
Size:50, 52
Verse Short Pro, carbon rails, 155mm width
Size:54, 56, 58, 60, 62
Verse Short Pro, carbon rails, 145mm width
*Seatpost
Size:50, 52, 54, 56
KVF aero carbon seatpost, 20mm offset, 280mm length
Size:58, 60, 62
KVF aero carbon seatpost, 20mm offset, 320mm length
*Handlebar
Size:50, 52
Bontrager Pro IsoCore VR-SF, 40cm
Size:54, 56
Bontrager Pro IsoCore VR-SF, 42cm
Size:58, 60, 62
Bontrager Pro IsoCore VR-SF, 44cm
Handlebar tape
Bontrager Supertack Perf tape
*Stem
Size:50
Trek RCS Pro, -7 degree, 80mm length
Size:52, 54
Trek RCS Pro, -7 degree, 90mm length
Size:56, 58
Trek RCS Pro, -7 degree, 100mm length
Size:60, 62
Trek RCS Pro, -7 degree, 110mm length
Brake
Shimano Dura-Ace BR-9270 hydraulic disc, flat mount caliper, resin pad w/fin.
*Brake rotor
Size:50, 52, 54, 56, 58, 60, 62
Shimano MT900, centerlock, 160mm
Size:50, 52, 54, 56, 58, 60, 62
Shimano CL900, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front, 160mm rear
Electronics
TQ 4A charger
Frame | 800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle |
---|---|
Fork | Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
Frame fit | Endurance |
Weight | 56 - 11.75 kg / 25.91 lbs (with TLR sealant, no tubes) |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
*Battery | Size:50, 52, 54, 56, 58, 60, 62 Shimano BT-DN300 |
---|---|
Size:50, 52, 54, 56, 58, 60, 62 TQ 360Wh |
|
Charger | Charging cable included |
Computer | TQ LED display with Bluetooth & ANT+ connectivity |
Motor | TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
Shifter | Shimano Dura-Ace R9270 Di2, 12 speed |
---|---|
Front derailleur | Shimano Dura-Ace R9250 Di2, braze-on, down swing |
Rear derailleur | Shimano Dura-Ace R9250 Di2, 34T max cog |
*Crank | Size:50, 52 Praxis Carbon, 170mm length |
Size:54, 56 Praxis Carbon, 172.5mm length |
|
Size:58, 60, 62 Praxis Carbon, 175mm length |
|
Chainring | Praxis, 50/34T, 12 speed |
Cassette | Shimano Dura-Ace R9200, 11-34, 12 speed |
Chain | Shimano Dura-Ace/XTR M9100, 12 speed |
Max chainring size | 1x: 46T, 2x: 52/36 |
Wheel front | Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle |
---|---|
Wheel rear | Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle |
Skewer front | Bontrager Switch thru axle, removable lever |
Skewer rear | Bontrager Switch thru axle, removable lever |
Tire | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm |
Tire part | Bontragr TLR sealant, 6oz |
Rim strip | Bontrager TLR |
Max tire size | 40mm without fenders, 35mm with fenders |
*Saddle | Size:50, 52 Verse Short Pro, carbon rails, 155mm width |
---|---|
Size:54, 56, 58, 60, 62 Verse Short Pro, carbon rails, 145mm width |
|
*Seatpost | Size:50, 52, 54, 56 KVF aero carbon seatpost, 20mm offset, 280mm length |
Size:58, 60, 62 KVF aero carbon seatpost, 20mm offset, 320mm length |
|
*Handlebar | Size:50, 52 Bontrager Pro IsoCore VR-SF, 40cm |
Size:54, 56 Bontrager Pro IsoCore VR-SF, 42cm |
|
Size:58, 60, 62 Bontrager Pro IsoCore VR-SF, 44cm |
|
Handlebar tape | Bontrager Supertack Perf tape |
*Stem | Size:50 Trek RCS Pro, -7 degree, 80mm length |
Size:52, 54 Trek RCS Pro, -7 degree, 90mm length |
|
Size:56, 58 Trek RCS Pro, -7 degree, 100mm length |
|
Size:60, 62 Trek RCS Pro, -7 degree, 110mm length |
|
Brake | Shimano Dura-Ace BR-9270 hydraulic disc, flat mount caliper, resin pad w/fin. |
*Brake rotor | Size:50, 52, 54, 56, 58, 60, 62 Shimano MT900, centerlock, 160mm |
Size:50, 52, 54, 56, 58, 60, 62 Shimano CL900, centerlock, 160mm |
|
Rotor size | Max brake rotor sizes: 180mm front, 160mm rear |
Electronics | TQ 4A charger |
---|
