Features

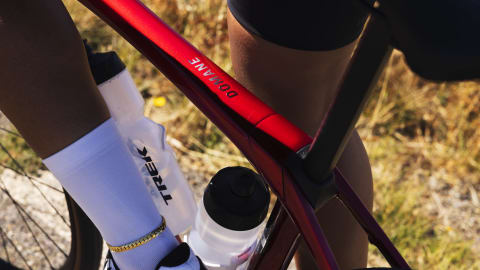

The smooth advantage
Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger longer.
Podium-topping speed
Raced to victory on the infamous cobblestones of Paris-Roubaix, the new carbon Domane is faster than ever thanks to new aerodynamic improvements and an ultra-light design.
Lighter than ever
Our best and lightest 800 Series OCLV Carbon and a new gram-saving design make this our lightest Domane SLR disc ever.

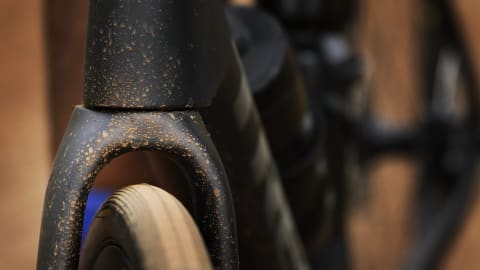

Versatile tire clearance
Comes equipped with fast rolling 32mm tires, but offers clearance for up to 38mm tires so you can confidently ride everything from smooth pavement to light gravel.

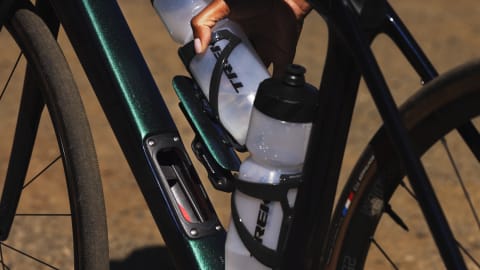

Internal storage
Internal downtube storage and top tube bag mounts make it easy to carry everything you need for all-day rides.

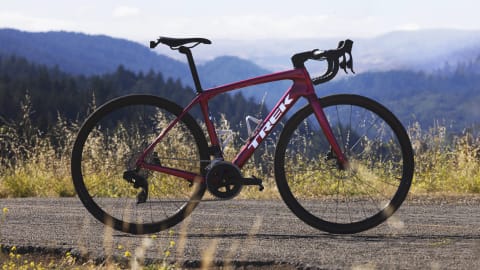

Refined integration
Domane is more integrated than ever, with hidden cables and a hidden seatpost clamp.
Shimano Ultegra Di2
Ultegra Di2 R8100 is Shimano's most inspired drivetrain, packed with innovative, game-changing features. HYPERGLIDE+ technology allows for crisp, seamless shifts both up and down the gear range, even during maximal efforts.The new Di2 shifting system introduces Shimano's exclusive wireless integrated circuit, and the move to a 12 speed cassette ensures you have all the gearing you need. Ergonomics and aerodynamics have been enhanced at every turn, and you can set up the drivetrain just the way you like it via Shimano’s user-friendly E-Tube app.
Specs
Frame | 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle |
---|---|
Frame with Fork | 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle |
Fork | Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle |
Frame fit | Endurance |
Weight | 56 - 7.89 kg / 17.41 lbs (with TLR sealant, no tubes) |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
Battery | Shimano BT-DN300 |
---|---|
Charger | Charging cable included |
Shifter | Shimano Ultegra R8170 Di2, 12 speed |
---|---|
Front derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
Rear derailleur | Shimano Ultegra R8150 Di2, 34T max cog |
*Crank | Size:47, 50 Shimano Ultegra R8100, 50/34, 165mm length |
Size:47 Shimano Ultegra R8100, 50/34, 165mm |
|
Size:50, 52, 54 Shimano Ultegra R8100, 50/34, 170mm length |
|
Size:54, 56 Shimano Ultegra R8100, 50/34, 172.5mm length |
|
Size:58, 60, 62 Shimano Ultegra R8100, 50/34, 175mm length |
|
Bottom bracket | Praxis, T47 threaded, internal bearing |
*Cassette | Size:47, 50, 52, 54, 56, 58, 60, 62 Shimano Ultegra R8101, 11-34, 12 speed |
Size:47, 50, 52, 54, 56, 58, 60, 62 Shimano Ultegra R8100, 11-34, 12 speed |
|
Chain | Shimano Ultegra/XT M8100, 12 speed |
Max chainring size | 1x: 48T, 2x: 52/36 |
Wheel front | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle |
---|---|
Wheel rear | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle |
Skewer front | Bontrager Switch thru axle, removable lever |
Skewer rear | Bontrager Switch thru axle, removable lever |
Tire | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm |
Tire part | Bontrager TLR sealant, 6oz |
Rim strip | Bontrager TLR |
Max tire size | 38mm without fenders, 35mm with fenders |
Bontrager Verse Short Elite, hollow stainless steel rails, 145mm width
*Saddle | Size:47, 50, 52 Verse Short Elite, hollow magnesium rails, 155mm width |
---|---|
Size:47, 50, 52 Bontrager Verse Short Elite, hollow stainless steel rails, 155mm width |
|
Size:54, 56, 58, 60, 62 Verse Short Elite, hollow magnesium rails, 145mm width |
|
*Seatpost | Size:47, 50, 52, 54, 56 KVF aero carbon seatpost, 20mm offset, 280mm length |
Size:58, 60, 62 KVF aero carbon seatpost, 20mm offset, 320mm length |
|
*Handlebar | Size:47 Bontrager Pro IsoCore VR-SF, 38cm |
Size:50, 52 Bontrager Pro IsoCore VR-SF, 40cm |
|
Size:54, 56 Bontrager Pro IsoCore VR-SF, 42cm |
|
Size:58, 60, 62 Bontrager Pro IsoCore VR-SF, 44cm |
|
Handlebar tape | Bontrager Supertack Perf tape |
*Stem | Size:47 Trek RCS Pro, -7 degree, 70mm length |
Size:50 Trek RCS Pro, -7 degree, 80mm length |
|
Size:52, 54 Trek RCS Pro, -7 degree, 90mm length |
|
Size:56, 58 Trek RCS Pro, -7 degree, 100mm length |
|
Size:60, 62 Trek RCS Pro, -7 degree, 110mm length |
|
Brake | Shimano Ultegra hydraulic disc, flat mount |
Brake rotor | Shimano CL800, centerlock, 160mm |
Rotor size | Max brake rotor sizes: 160mm front & rear |
Bag | Bontrager BITS Internal Frame Storage Bag |
---|
