Domane AL 2 Gen 4

455.00
2184.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Features

          Lightweight design

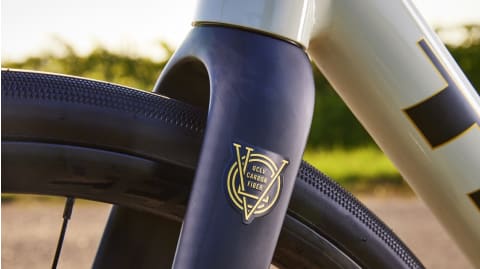

          A new full carbon fork and updated frame design helps shave around half a pound from the previous generation Domane AL Disc.

          Right for any road

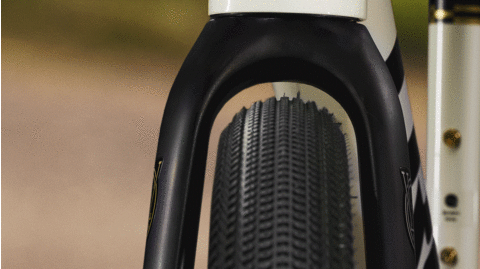

          Room for bigger tires let you ride everything from smooth pavement to most gravel roads in comfort.

          Long-haul comfort

          A more upright road riding position keeps you comfortable, confident, and efficient during long days in the saddle.

          Pack it up, pack it in

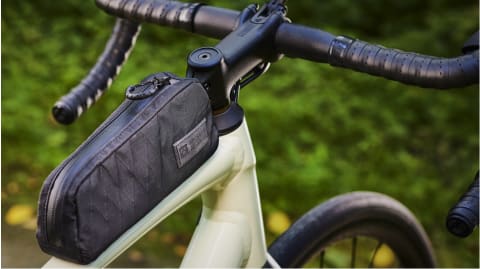

          Mounts for a top tube bag, rack, fenders and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.

          Modern ergonomics, premium integration

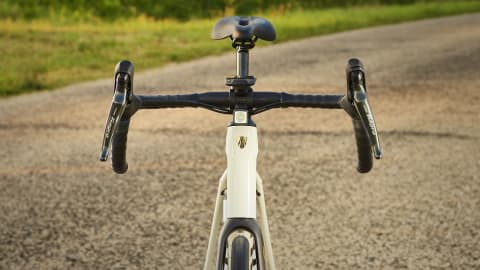

          A modern handlebar with 4cm of flare between the drops and hoods put you in a more comfortable position, and new hidden cable routing offers premium integration typically found on more expensive models.

          High-value performance

          Domane AL Disc is built in Trek's road race heritage, which means it's a road bike you won't outgrow as your rides get longer and faster.

          Shimano 105

          With shift technology inherited from mechanical Ultegra and Dura-Ace, Shimano 105 gives you top-shelf shifting at a budget friendly price. Whether you're commuting year-round or training for the big race, Shimano 105 is a workhorse drivetrain that won't hold you back as you grow in the sport.

          Specs

          Frame 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
          Fork Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
          Weight 56 - 10.55 kg / 23.26 lbs
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
          *Shifter Size:44, 49, 52, 54, 56, 58, 61
          Shimano Claris ST-R2000-R, 8 speed, right
          Size:44, 49, 52, 54, 56, 58, 61
          Shimano Claris ST-R2000-L, 8 speed, left
          Front derailleur Shimano Claris R2000, FD-R2000, 8-speed, 31.8mm clamp
          Rear derailleur Shimano Claris RD-R2000, long cage, 34T max cog
          *Crank Size:44
          Shimano RS200, 50/34 (compact), 165mm length
          Size:49, 52, 54
          Shimano RS200, 50/34 (compact), 170mm length
          Size:56, 58, 61
          Shimano RS200, 50/34 (compact), 175mm length
          Bottom bracket Shimano UN30, 68mm, threaded cartridge, 110mm spindle
          Cassette Shimano HG31, CS-HG31, 11-32, 8 speed
          Chain Shimano Sora HG71, 8 speed
          Max chainring size 1x: 50T, 2x: 50/34
          Hub front Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
          Skewer front Bontrager Switch chamfered thru axle, removable lever
          Hub rear Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
          Skewer rear Bontrager Switch chamfered thru axle, removable lever
          Rim Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
          Spokes 14g stainless steel, black
          Tire Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
          Max tire size 38mm without fenders, 35mm with fenders
          Saddle Verse Short, steel rails, 145mm width
          *Seatpost Size:44, 49
          Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
          Size:52, 54, 56, 58, 61
          Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
          *Handlebar Size:44
          Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
          Size:44, 49
          Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width
          Size:49
          Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
          Size:52
          Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
          Size:52
          Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width
          Size:54, 56
          Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
          Size:54, 56
          Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width
          Size:58, 61
          Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width
          Size:58, 61
          Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
          Handlebar tape Bontrager Supertack Perf tape
          *Stem Size:44
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
          Size:49
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
          Size:52, 54
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
          Size:56, 58
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
          Size:61
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
          Brake Tektro C550 mechanical disc brake, dual piston, flat mount
          Brake rotor Tektro wave, 6-bolt, 160mm
          Rotor size Max brake rotor sizes: 160mm front & rear
