Features

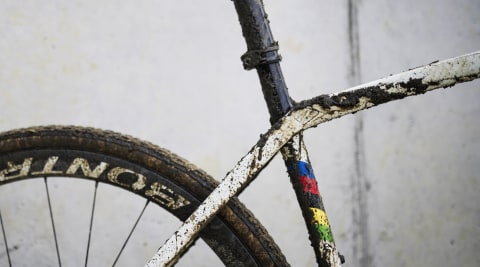

Smooth is fast
IsoSpeed takes the edge off body-beating course bumps and gravel chatter so you can stay stronger longer, without giving up any pedaling efficiency.
Cross racing tech
Our exclusive technologies give you and our pro racers the race-ready details will keep you out front: Ultra stable and compliant IsoSpeed fork. Smarter cable routing. Better shoulderability. Rugged 3S chain keeper.
Shimano GRX
Shimano GRX was designed from the ground up for gravel adventure. With its gravel-specific ergonomics, optimized gearing options, rugged reliability, and quiet, stable drivetrain, GRX sets itself apart from the rest of the component world.

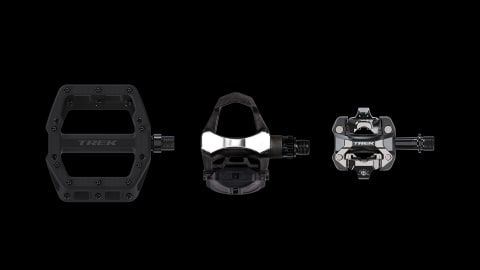

Don’t forget your pedals
This bike doesn’t come with pedals because you’ll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style.
Specs
Frame | 600 Series OCLV Carbon, IsoSpeed, tapered head tube, Internal cable routing, Ride Tuned seatmast, 3S chain keeper, T47 BB, flat mount disc, 142x12mm thru axle |
---|---|
Fork | Trek Cross, full carbon, tapered carbon steerer, flat mount disc, 12x100mm thru axle |
Frame fit | CX Race |
Weight | 56 - 8.30 kg / 18.3 lbs |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
Shifter | Shimano GRX RX810, 11 speed |
---|---|
Rear derailleur | Shimano GRX RX810, long cage, 34T max cog |
*Crank | Size:49, 52 Shimano GRX RX810, 40T ring, 170mm length |
Size:54, 56 Shimano GRX RX810, 40T ring, 172.5mm length |
|
Size:58, 61 Shimano GRX RX810, 40T ring, 175mm length |
|
Bottom bracket | Praxis, T47 threaded, internal bearing |
Cassette | Shimano Ultegra HG800, 11-34, 11 speed |
Chain | Shimano Ultegra HG701, 11 speed |
Max chainring size | See service manual |
Wheel front | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle |
---|---|
Wheel rear | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle |
Skewer front | Bontrager Switch thru axle, removable lever |
Skewer rear | Bontrager Switch thru axle, removable lever |
Tire | Bontrager CX3 Team Issue, aramid bead, 120 tpi, 700x32mm |
Max tire size | 38mm |
*Saddle | Size:49, 52 Bontrager Verse Short Comp, steel rails, 155mm width |
---|---|
Size:49, 52 Bontrager Verse Comp, steel rails, 155mm width |
|
Size:54, 56, 58, 61 Bontrager Verse Short Comp, steel rails, 145mm width |
|
Size:54, 56, 58, 61 Bontrager Verse Comp, steel rails, 145mm width |
|
*Seatpost | Size:49, 52, 54, 56 Bontrager carbon seatmast cap, 5mm offset, short length |
Size:58, 61 Bontrager carbon seatmast cap, 5mm offset, tall length |
|
*Handlebar | Size:49 Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 93mm reach, 123mm drop, 38cm width |
Size:52 Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 93mm reach, 123mm drop, 40cm width |
|
Size:54, 56 Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 93mm reach, 123mm drop, 42cm width |
|
Size:58, 61 Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 93mm reach, 123mm drop, 44cm width |
|
Handlebar tape | Bontrager Supertack Perf tape |
*Stem | Size:49 Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length |
Size:52, 54 Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
Size:56, 58 Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length |
|
Size:61 Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 110mm length |
|
Brake | Shimano RX810 hydraulic disc, flat mount |
Brake rotor | Shimano MT800, centerlock, 160mm |
Rotor size | Max brake rotor sizes: 160mm front & rear |
