Features

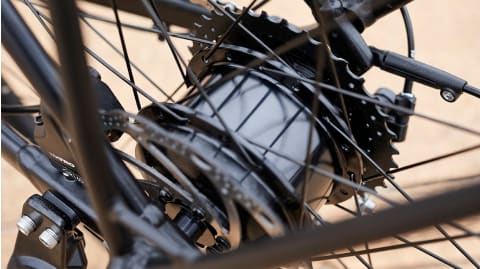

Powerful drive system
A lightweight and powerful 40Nm rear hub drive offers confident handling and uninterrupted power.

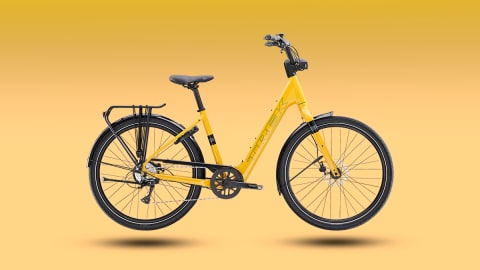

Light and comfortable
The updated frame keeps your ride light, easy to handle, and easy to store when you're done �� all the while elevating comfort so you can spend more time enjoying the ride.

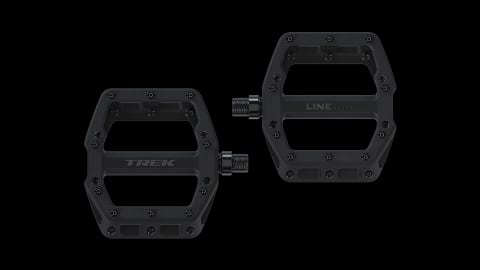

Upgrade your pedals and love your bike more
Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.
Compliant with leading safety regulations
The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification��so all you have to worry about is where your e-bike will take you next.
Specs
Frame | Alpha Gold Aluminum, lowstep, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5mm OLD hub motor spacing |
---|---|
Fork | Verve+ LT alloy, threadless steel steerer, ThruSkew QR |
Hub front | Formula DC-20, alloy, 6-bolt, 5x100mm QR |
---|---|
Skewer front | 132x5mm QR, ThruSkew |
Hub rear | Hyena hub drive motor, 40Nm, 250W |
Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
Tire | Bontrager H2 Comp, wire bead, 30 tpi, 27.5x2.00'' |
Max tire size | 27.5x2.00" |
Battery | 250Wh, integrated in down tube |
---|---|
Charger | 2A, 42V output, 100V-240V AC input |
Computer | LED display |
Shifter | Shimano M315, 8 speed |
---|---|
Rear derailleur | Shimano Acera M3020-8, 40T max cog |
Crank | ProWheel Pro alloy, 42T narrow-wide steel ring, 170mm length |
Bottom bracket | Torque sensor, threaded, 122.5mm spindle |
Cassette | Shimano HG20, 12-32, 8 speed |
Chain | KMC Z8.3 |
Pedal | Bontrager City pedals |
Max chainring size | 1x: 42T |
Saddle | Bontrager Boulevard |
---|---|
Seatpost | Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
Handlebar | Bar/stem w/ light mount |
Grips | Bontrager Satellite |
Stem | Integrated stem, 35mm clamp |
Brake | Tektro HD-M275 hydraulic disc |
*Brake rotor | Size:S, M, L Tektro wave, 6-bolt, 160mm |
Size:S, M, L Tektro, 6-bolt, 160mm |
|
Brake Set | Tektro HD-M275 hydraulic disc |
*Light | Size:S, M, L Herrmans MR5-E, 140lumen, 40lux, LED, headlight |
---|---|
Size:S, M, L Spanninga Solo, taillight |
|
Kickstand | Adjustable length alloy kickstand |
Cargo rack | MIK-compatible alloy rear rack |
*Fender | Size:S, M, L SKS wide |
Size:S, M, L SKS wide, plastic |
Weight | M - 19.80 kg / 43.66 lbs |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
