Top Fuel 9.9 XTR

1480.00
11520.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Features

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

          Quick and in control

          120mm of rear travel combined with progressive trail geometry gives you a fast, responsive ride that helps you keep your cool when the trail turns rowdy.

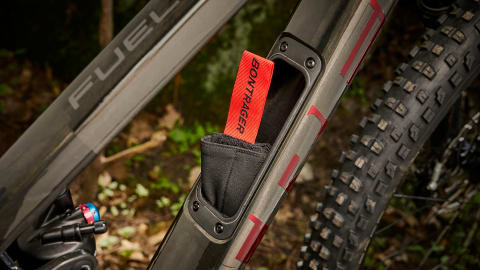

          Internal Storage

          Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

          Hassle-free routing

          Guided internal cable routing keeps Top Fuel quiet on the trail and maintenance a breeze.

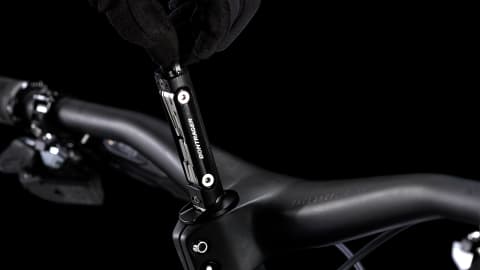

          BITS: Your trailside savior

          Cleverly integrated into the steerer tube, the included BITS multi-tool has everything you need for trailside adjustments and repairs.

          Will my bike have a curved top tube?

          Smaller frames (XS and S) have a curved top tube. This design makes for a lower standover height, which allows shorter riders to straddle the bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don't have the same issues with standover height.

          Shimano XTR

          Designed to meet the highest level of competitive mountain bike racing needs, with second to none performance and experience, Shimano XTR M9100 brings lightweight, high-end versatility to XC, enduro, and marathon racing.

          Specs

          Frame OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
          Fork Fox Factory 34, Float EVOL air spring, GRIP2 damper, tapered steerer, 44mm offset, Kashima Coat, Boost110, 15mm Kabolt axle, 130mm travel
          Shock Fox Factory Float DPS, 3-position damper, open-mode adjustment, Kashima Coat, 185mm x 50mm
          Wheel front Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
          Wheel rear Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 27.5''
          Skewer rear Bontrager Switch thru axle, removable lever
          Tire Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29x2.40''
          Tire part Bontrager TLR sealant, 6oz
          Rim strip Bontrager TLR
          Shifter Shimano XTR M9100, 12 speed
          Rear derailleur Shimano XTR M9100, Shadow Plus, long cage, 51T max cog
          Crank E*thirteen TRS Race Carbon, 30T, 55mm chainline, 170mm length
          Bottom bracket E*thirteen BB20-P, BSA threaded, 73mm width
          Cassette Shimano XTR M9101, 10-51, 12 speed
          Chain Shimano Dura-Ace/XTR M9100, 12 speed
          Saddle Bontrager Arvada Pro, carbon rails, 138mm width
          *Seatpost Size:S
          Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
          Size:M, M/L
          Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
          Size:L
          Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
          Size:XL
          Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
          *Handlebar/stem (integrated) Size:S
          Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 35mm stem length
          Size:M, M/L, L, XL
          Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length
          Grips Bontrager XR Trail Elite, nylon lock-on
          Headset Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
          Brake Shimano XTR M9100 hydraulic disc
          *Brake rotor Size:S, M, M/L, L, XL
          Shimano RT86, 6-bolt, 180mm
          Size:S, M, M/L, L, XL
          Shimano RT86, 6-bolt, 160mm
          Weight M - 12.20 kg / 26.9 lbs (with TLR sealant, no tubes)
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
