Top Fuel 9.8 GX AXS

Features

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Quick and in control

120mm of rear travel combined with progressive trail geometry gives you a fast, responsive ride that helps you keep your cool when the trail turns rowdy.

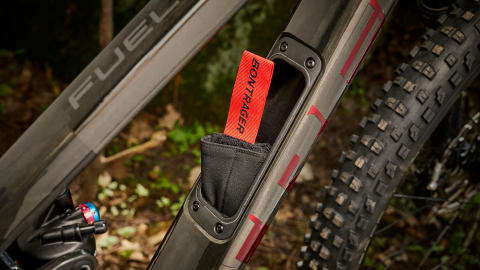

Internal Storage

Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

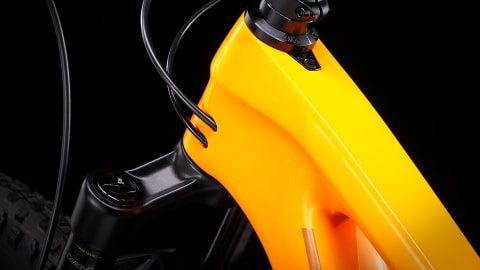

Hassle-free routing

Guided internal cable routing keeps Top Fuel quiet on the trail and maintenance a breeze.

Will my bike have a curved top tube?

Smaller frames (XS and S) have a curved top tube. This design makes for a lower standover height, which allows shorter riders to straddle the bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don't have the same issues with standover height.

Specs

Frame	OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
Fork	RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
Shock	RockShox Deluxe Ultimate RCT, 185mm x 50mm
Max compatible fork travel	130mm (541mm axle-to-crown)

Wheel front	Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Wheel rear	Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 29''
Skewer rear	Bontrager Switch thru axle, removable lever
Tire	Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29x2.40''
Tire part	Bontrager TLR sealant, 6oz
Rim strip	Bontrager TLR
Max tire size	Frame: 29x2.50", Fork: See manufacturer

Battery	SRAM eTap battery pack (with charger)

Shifter	SRAM GX Eagle AXS, 12 speed
Rear derailleur	SRAM GX Eagle AXS
*Crank	Size:S, M, M/L, L SRAM GX Eagle, DUB MTB Wide, 30T, 55mm chainline, 170 length
	Size:XL SRAM GX Eagle, DUB MTB Wide, 30T, 55mm chainline, 175 length
Bottom bracket	SRAM DUB MTB Wide, 73mm, BSA threaded
Cassette	SRAM Eagle XG-1275, 10-52, 12 speed
Chain	SRAM GX Eagle, 12 speed
Max chainring size	1x: 36T round, 34T oval, min 28T

Saddle	Bontrager Arvada, austenite rails, 138mm width
*Seatpost	Size:S Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
	Size:M, M/L Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
	Size:L Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
	Size:XL Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
*Handlebar	Size:S Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
	Size:M, M/L, L, XL Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Stem	Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length
Headset	Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake	SRAM G2 RS 4-piston hydraulic disc
*Brake rotor	Size:S, M, M/L, L, XL SRAM CenterLine, 6-bolt, round-edge, 160mm
	Size:S, M, M/L, L, XL SRAM CenterLine, 6-bolt, round edge, 180mm

Weight	M - 12.50 kg / 27.56 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
