Top Fuel 7

490.00
2352.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Features

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

          Quick and in control

          120mm of rear travel combined with progressive trail geometry gives you a fast, responsive ride that helps you keep your cool when the trail turns rowdy.

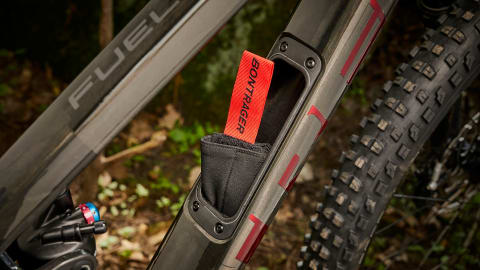

          Internal Storage

          Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

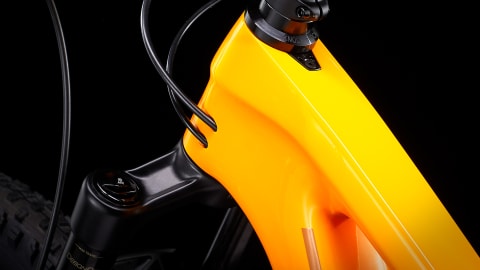

          Hassle-free routing

          Guided internal cable routing keeps Top Fuel quiet on the trail and maintenance a breeze.

          Will my bike have a curved top tube?

          Smaller frames (XS and S) have a curved top tube. This design makes for a lower standover height, which allows shorter riders to straddle the bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don't have the same issues with standover height.

          Shimano XT

          Shimano XT is the original mountain bike groupset and trusted by generations of mountain bikers around the world. Whatever the trail, wherever you ride, XT is your solution for mountain biking today. Reliable shifting. Superior braking. Intuitive maintenance. XT is the high performance workhorse you can count on.

          Specs

          Frame Alpha Platinum Aluminum, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
          Fork RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
          Shock Fox Performance Float DPS, 3-position damper, 185mm x 50mm
          Max compatible fork travel 130mm (541mm axle-to-crown)
          Wheel front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
          Wheel rear Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
          Skewer rear Bontrager Switch thru axle, removable lever
          Tire Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29x2.40''
          Tire part Bontrager TLR sealant, 6oz
          Rim strip Bontrager TLR
          Max tire size Frame: 29x2.50", Fork: See manufacturer
          Shifter Shimano SLX M7100, 12 speed
          Rear derailleur Shimano XT M8100, long cage
          *Crank Size:S, M, M/L, L
          Shimano Deore M6120, 30T ring, 55mm chainline, 170mm length
          Size:XL
          Shimano Deore M6120, 30T ring, 55mm chainline, 175mm length
          *Bottom bracket Size:S, M, M/L, L, XL
          Shimano BB-MT501 BSA
          Size:S, M, M/L, L, XL
          Shimano SM-BB52, 73mm, threaded external bearing
          Cassette Shimano Deore M6100, 10-51, 12 speed
          Chain Shimano Deore M6100, 12 speed
          Max chainring size 1x: 36T round, 34T oval, min 28T
          Saddle Bontrager Arvada, steel rails, 138mm width
          *Seatpost Size:S
          TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length
          Size:M, M/L
          TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length
          Size:L, XL
          TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length
          Handlebar Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
          Grips Bontrager XR Trail Comp, nylon lock-on
          Stem Bontrager Rhythm Comp, 31.8mm, 0 degree, 50mm length
          Headset Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
          Brake Shimano hydraulic disc, MT4100 lever, MT410 caliper
          *Brake rotor Size:S, M, M/L, L, XL
          Shimano RT56, 6-bolt, 180mm
          Size:S, M, M/L, L, XL
          Shimano RT56, 6-bolt, 160mm
          Rotor size Max brake rotor sizes - Frame: 180mm, Fork: see fork manufacturer
          Bag Bontrager BITS Internal Frame Storage Bag
          Weight M - 14.83 kg / 32.7 lbs
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
