Supercaliber SL 9.7 Gen 2

Features

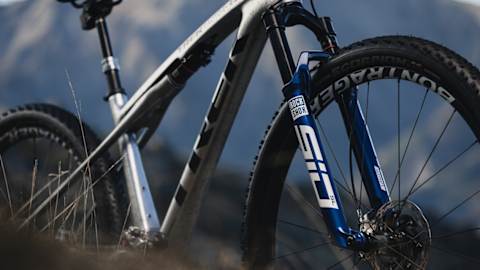

Nothing else like it

Supercaliber’s unique frame design ditches traditional suspension hardware so there’s less weight, less maintenance, and less lateral flex. IsoStrut connects the mainframe to the pivot-less seat stays to offer about 80mm of rear wheel travel. This design offers a unique blend of efficiency, traction, and fatigue-fighting compliance that keeps racers fresh and in control.

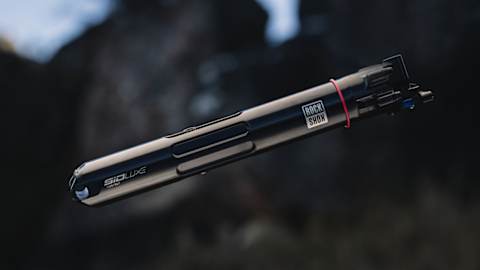

IsoStrut

IsoStrut integrated suspension gives you just enough travel to stay in control. It's fully tuneable like a standard rear shock, but without the weight penalty of a full suspension bike.

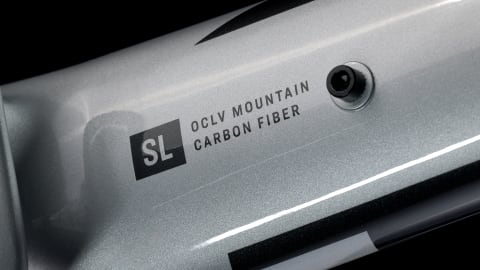

SL OCLV Mountain Carbon

Supercaliber SL is a lightweight OCLV Carbon frame. It features a lightweight carbon layup that doesn't compromise stiffness for weight, plus it featuers internal guides that make cable routing a breeze.

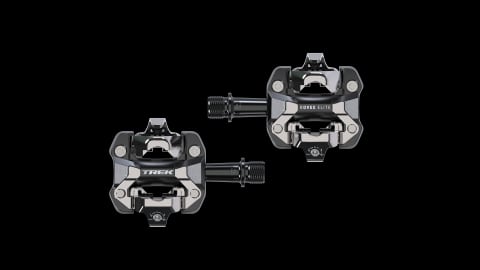

You almost forgot your pedals

This bike doesn’t come with pedals because you'll have a better ride if you choose your own. See the pedal guide to find the best pedals for your riding style. Want pedals built for the race? We recommend clipless MTB pedals for control & efficiency.

Specs

Frame	SL OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel
Fork	RockShox Reba RL, Solo Air spring, Motion Control damper, remote lockout, tapered steerer, 51mm offset, Boost110, 15mm Maxle Stealth, 110mm travel
Shock	Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
Max compatible fork travel	120mm (533mm axle-to-crown)

Wheel front	Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Wheel rear	Bontrager Kovee Comp 25, Tubeless Ready, Rapid Drive 108, Boost148, 12mm thru axle, 29''
Skewer rear	Bontrager Switch thru axle, removable lever
Tire	Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40''
Tire part	Bontrager TLR sealant, 6oz
Rim strip	Bontrager TLR
Max tire size	Frame: 29x2.40", Fork: See manufacturer

Battery	SRAM eTap battery pack (with charger)

Shifter	SRAM AXS POD
Rear derailleur	SRAM GX Eagle AXS, T-Type
*Crank	Size:S, M SRAM GX Eagle, DUB, T-Type, 34T, 55mm chainline, 170mm length
	Size:M/L, L, XL SRAM GX Eagle, DUB, T-Type, 34T, 55mm chainline, 175mm length
Bottom bracket	SRAM DUB, 92mm, PressFit
Cassette	SRAM Eagle XS-1275, T-Type,10-52, 12 speed
Chain	SRAM GX Eagle, T-Type, 12 speed
Max chainring size	1x: 38T, min 30T

Saddle	Bontrager Verse Elite, austenite rails, 145mm width
*Seatpost	Size:S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length
	Size:M, M/L Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 410mm length
	Size:L, XL Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length
*Handlebar	Size:S Bontrager Kovee Pro, OCLV Carbon, 35mm, 5mm rise, 720mm width
	Size:M, M/L, L, XL Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
*Stem	Size:S, M Bontrager Elite, 35mm, 13-degree, 60mm length
	Size:M/L Bontrager Elite, 35mm, 13-degree, 70mm length
	Size:L Bontrager Elite, 35mm, 13-degree, 80mm length
	Size:XL Bontrager Elite, 35mm, 13-degree, 90mm length
Headset	FSA IS-2, 1-1/8'' top, 1.5'' bottom
Brake	SRAM Level Bronze 2-piston hydraulic disc
*Brake rotor	Size:S, M, M/L, L, XL SRAM CenterLine, 6-bolt, round-edge, 160mm
	Size:S, M, M/L, L, XL SRAM CenterLine, 6-bolt, round edge, 180mm
Rotor size	Max brake rotor sizes - Frame: 160mm, Fork: see fork manufacturer

Tool	Bontrager Switch thru axle, removable lever

Weight	M - 11.80 kg / 26.02 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
