          Features

          Nothing else like it

          Supercaliber’s unique frame design ditches traditional suspension hardware so there’s less weight, less maintenance, and less lateral flex. IsoStrut connects the mainframe to the pivot-less seat stays to offer about 60mm of rear wheel travel. This design offers a unique blend of efficiency, traction, and fatigue-fighting compliance that keeps racers fresh and in control.

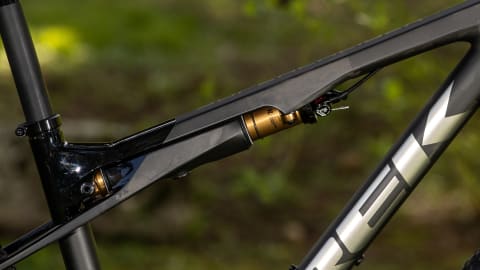

          IsoStrut

          IsoStrut integrated suspension gives you just enough travel to stay in control. It's fully tuneable like a standard rear shock, but without the weight penalty of a full suspension bike.

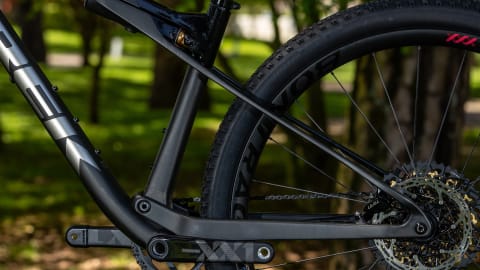

          OCLV Mountain Carbon

          Trek's mountain-specific carbon is engineered to withstand the extreme demands of off-road racing. Advanced analysis allows our designers to create a frame with the best blend of light weight, responsiveness, and just enough compliance in the seat stays to eliminate the need for a heavy rear pivot system.

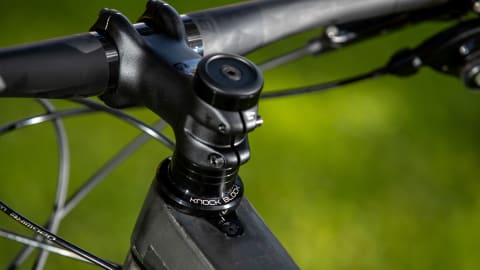

          Straight Shot w/Knock Block

          Trek's Straight Shot frame design optimizes the stiffness-to-weight ratio for a more responsive ride. You'll be able to push harder and stay more planted on your line when the going gets rough.

          Shimano Deore

          Shimano Deore brings even more adventure with a wider range of gear choices for the steep stuff, the fast stuff, and the fun. With smooth riding, improved chain stability, and sharp shifting, Deore heightens your mountain biking confidence and control so you can focus on the trail and enjoy the ride.

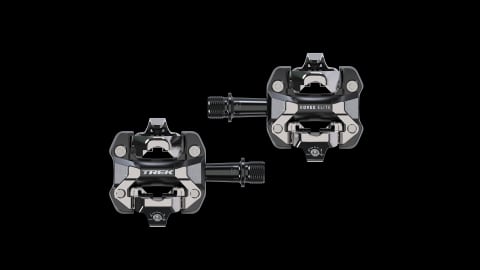

          You almost forgot your pedals

          This bike doesn’t come with pedals because you'll have a better ride if you choose your own. See the pedal guide to find the best pedals for your riding style. Want pedals built for the race? We recommend clipless MTB pedals for control & efficiency.

          Specs

          Frame OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
          Fork RockShox Recon Gold RL, DebonAir spring, Motion Control damper, remote lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 100mm travel
          Shock Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235mm x 32.5mm
          Suspension lever Fox 2-position dual lockout lever
          Max compatible fork travel 120mm (531mm axle-to-crown)
          Wheel front Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
          Wheel rear Bontrager Kovee Comp 23, Tubeless Ready, Shimano Microspline freehub, Rapid Drive 108, Boost148, 29''
          Skewer rear Bontrager Switch thru axle, removable lever
          Tire Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20''
          Tire part Bontrager TLR sealant, 6oz
          Rim strip Bontrager TLR
          Max tire size Frame: 29x2.20", Fork: See manufacturer
          Shifter Shimano Deore M6100, 12 speed
          Rear derailleur Shimano SLX M7100, long cage
          *Crank Size:S, M
          Shimano MT511, 32T steel ring, 52mm chainline, 170mm length
          Size:M/L, L, XL
          Shimano MT511, 32T steel ring, 52mm chainline, 175mm length
          Bottom bracket Shimano MT500, 92mm, PressFit
          Cassette Shimano Deore M6100, 10-51, 12 speed
          Chain Shimano Deore M6100, 12 speed
          Max chainring size 1x: 36T
          Saddle Bontrager Arvada, steel rails, 138mm width
          *Seatpost Size:S
          Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 330mm length
          Size:M, M/L, L, XL
          Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 400mm length
          Handlebar Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width
          Grips Bontrager XR Trail Comp, nylon lock-on
          *Stem Size:S
          Bontrager Rhythm Comp, 31.8mm, 0 degree, 60mm length
          Size:M, M/L
          Bontrager Rhythm Comp, 31.8mm, 0 degree, 70mm length
          Size:L, XL
          Bontrager Rhythm Comp, 31.8mm, 0 degree, 80mm length
          Headset Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
          *Brake Size:S, M, M/L, L, XL
          Shimano hydraulic disc, MT4100 lever, MT410 caliper
          Size:S, M, M/L
          Shimano hydraulic disc, MT4100 lever, MT420 4-piston caliper
          *Brake rotor Size:S, M, M/L, L, XL
          Shimano RT56, 6-bolt, 180mm
          Size:S, M, M/L, L, XL
          Shimano RT56, 6-bolt, 160mm
          Rotor size Max brake rotor sizes - Frame: 160mm, Fork: see fork manufacturer
          Weight M - 12.25 kg / 27.01 lbs
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
