Features

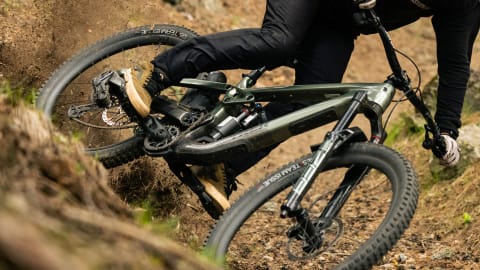

High-pivot suspension
Slash's high main pivot allows the axle to move rearward as the suspension compresses, so the back wheel moves with the force from bumps and gets out of the way faster. On the trail, it feels ultra-smooth while maintaining more momentum with insane traction.

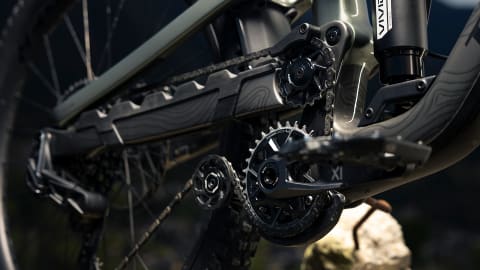

Curb the kickback
Slash's oversized upper idler not only eliminates the pedal kickback caused by high pivot, but its size and position also give you just the right amount of anti-squat for efficient pedaling. The lower idler takes chain tension off the derailleur so you get smoother shifting and suspension performance.
Specs
Frame | Alpha Platinum Aluminum, high main pivot, idler pulley, internal storage, angle-adjust headset, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, ISCG 05, Active Braking Pivot, UDH, 148x12mm thru axle, 170mm travel |
---|---|
Fork | Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt-X axle, 170mm travel |
Shock | Fox Performance Float X, 2-position damper, 230mm x 65mm |
Max compatible fork travel | 190mm (606mm axle-to-crown), S: 190mm (587mm axle-to-crown) |
*Wheel front | Size:S Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5'' |
---|---|
Size:M, M/L, L, XL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' |
|
Wheel rear | Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle, 27.5'' |
Skewer rear | Bontrager Switch thru axle, removable lever |
*Tire | Size:S , M, M/L, L, XL Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5x2.50'' |
Size:M, M/L, L, XL Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50'' |
|
Tire part | Bontrager TLR sealant, 6oz |
Rim strip | Bontrager TLR |
Max tire size | Frame: 2.50", Fork: See manufacturer |
Shifter | Shimano XT M8100, 12 speed |
---|---|
Rear derailleur | Shimano XT M8100, long cage |
Crank | Shimano Deore M6120, 30T ring, 55mm chainline, 165mm length |
Bottom bracket | Shimano BB-MT501 BSA |
Cassette | Shimano XT M8100, 10-51, 12 speed |
Chain | Shimano SLX M7100, 12 speed |
Max chainring size | 1x: 34T round, 32T oval, min 28T |
Saddle | Bontrager Verse P3, chromoly rails |
---|---|
*Seatpost | Size:S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length |
Size:M, M/L, L, XL Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length |
|
Handlebar | Bontrager Line, alloy, 35mm, 27.5mm rise, 820mm width |
Grips | Bontrager XR Trail Pro, alloy lock-on |
Stem | Bontrager Elite, 35mm, 0 degree, 35mm length |
Headset | Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible |
Brake | Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper |
Brake rotor | Shimano RT66, 6-bolt, 203mm |
Rotor size | Max brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer |
Bag | Bontrager BITS Internal Frame Storage Bag |
---|
Weight | M - 16.50 kg / 36.38 lbs (with TLR sealant, no tubes) |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
