Session 9 X01

Features

All speed, no hang-ups

Session’s high-pivot design results in a rearward axle path that lets the back wheel move with the rearward force from bumps, not against it. On the trail, it feels like smoother suspension that maintains more forward momentum and provides more grip.

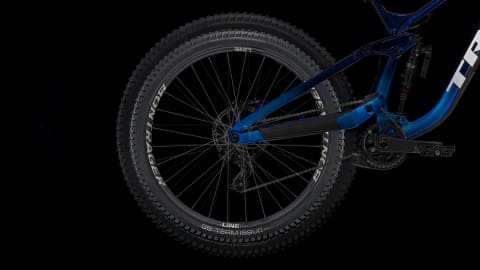

Rock the mullet

Session comes stocked for speed with 29er wheels, but party-in-the-back riders can run a mixed set up with a 27.5 rear wheel, or even 27.5" front and rear for more agility.

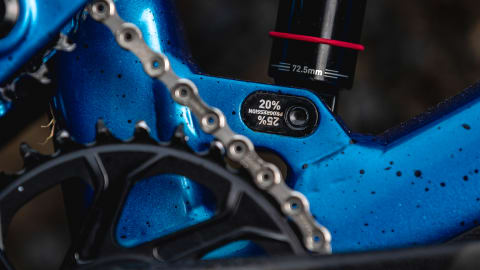

Tune for your trail

With Mino Link adjustments on both geometry and suspension, you can easily tune your Session to a progressive feel for racing days or dial it back for park days.

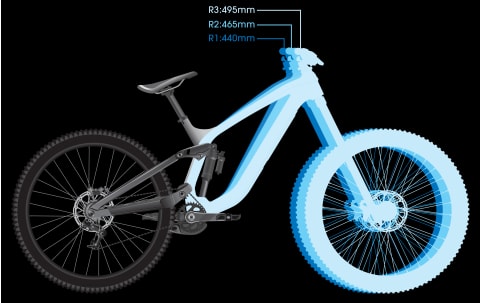

Reach-based sizing

When it comes to DH bikes, your reach affects your fit and ride quality far more than seat tube length. We’ve based Session’s sizing on reach to ensure you can find the set up that’s right for you.

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

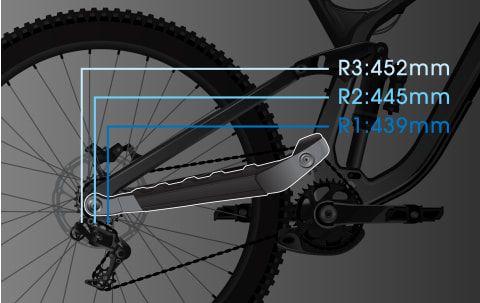

Size-specific chainstay length

The chainstay length, or rear center, grows as the frame reach grows so you get balanced weight distribution no matter your frame’s size. High-speed control and big mountain fun for everyone.

Specs

Frame	Alpha Platinum Aluminum, high main pivot, idler pulley, integrated frame protection, internal or external routing, magnesium rocker link, Mino Link, ISCG 05 2-bolt mount, Active Braking Pivot, 157x12mm thru axle, 200mm travel
Fork	RockShox Boxxer Ultimate, DebonAir+ spring, Charger 3 damper, 52mm offset, BoostDH 110x20 Maxle Stealth, 200mm travel
Shock	RockShox Vivid Ultimate, 250mm x 72.5mm
Max compatible fork travel	200mm

Wheel front	Bontrager Line DH 30, Tubeless Ready, 6-bolt, 110x20mm Boost thru axle, 29''
Wheel rear	Bontrager Line DH 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano 7 speed freehub, 157x12mm thru axle, 29''
Skewer rear	Bontrager Switch thru axle, removable lever
Tire	Bontrager G5 Team Issue, wire bead, 2-ply 60 tpi, 29x2.50''
Rim strip	Bontrager TLR
Max tire size	Frame: 29x2.50", Fork: See manufacturer

Shifter	SRAM X01 DH, 7 speed
Rear derailleur	SRAM X01 DH, medium cage
Crank	SRAM X01 DH, DUB 83, 34T alloy ring, 165mm length
Bottom bracket	SRAM DUB, 83mm, BSA threaded
Cassette	SRAM PG-720, 11-25, 7 speed
Chain	SRAM PC-1110, 11 speed
Pedal	Wellgo MG-1, magnesium body, Cro-Mo axle, replaceable pins
Max chainring size	1x: 36T

Saddle	Bontrager Arvada, austenite rails, 138mm width
Seatpost	Bontrager Rhythm Elite, 31.6mm, 0mm offset, 330mm length
Handlebar	Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 820mm width
Grips	Bontrager XR Trail Elite, nylon lock-on
Stem	Bontrager Line Pro, 35mm, Direct Mount, 50mm length
Headset	FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom (includes geometry adjust angled cups)
*Brake rotor	Size:R1, R2, R3 SRAM 6-bolt, 200mm
	Size:R1, R2, R3 SRAM HS2, 6-bolt, 220mm
Rotor size	Max brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer

Weight	R2 - 17.50 kg / 38.59 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
