Features

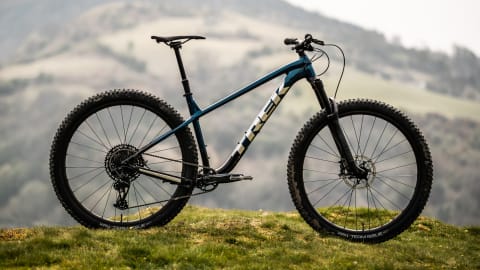

Ready to get rowdy
With 140mm front travel, trail-smashing 29-inch wheels, and dialed-for-dirt frame features, Roscoe is ready to get rowdy on your favorite rides.
Progressive trail geometry
A long reach, slack head angle, steep seat angle, and short chain stays combine for a ride that's confidence inspiring, yet still nimble and fun.

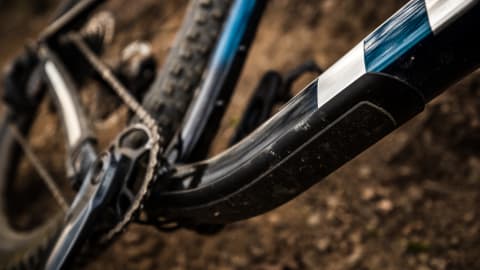

The strong quiet type
Roscoe stays well protected with a double-sided chainstay guard, tough downtube guard, and internal cable guides that help your ride stay quiet, even over rough trails.
Shimano CUES
Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano’s new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette, and chainrings.
Shimano LINKGLIDE
LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting – along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains.

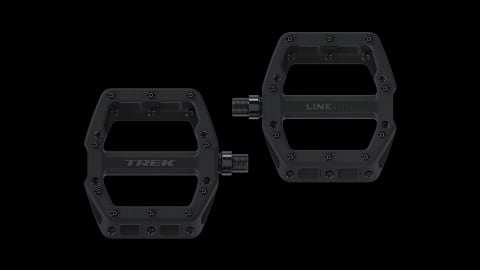

Upgrade your pedals and love your bike more
Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.
Specs
Frame | Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, ISCG 05, threaded BB, Boost148, 12mm thru axle |
---|---|
Fork | SR Suntour XCR 34, air spring, LO R damper, hydraulic lockout, tapered steerer, 44mm offset, Boost110, 15mm bolt-on thru axle, 140mm travel |
Hub front | Shimano TC500 alloy, centerlock, 110x15mm thru axle |
---|---|
Hub rear | Shimano TC500 alloy, centerlock, 148x12mm thru axle |
Skewer rear | Bontrager Switch thru axle, removable lever |
Rim | Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve |
*Tire | Size:XS Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.60'' |
Size:S, M, M/L, L, XL Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.60'' |
|
Tire part | Bontrager TLR sealant, 6oz |
Max tire size | Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer |
Rear derailleur | Shimano CUES U4000 |
---|---|
*Crank | Size:XS, S, M, M/L, L FSA Alpha Drive, 28T steel ring, 55mm chainline, 170mm length |
Size:XL FSA Alpha Drive, 28T steel ring, 55mm chainline, 175mm length |
|
Bottom bracket | Shimano 7420ST, 73mm, threaded cartridge |
Cassette | Shimano LINKGLIDE LG300, 11-46, 9 speed |
Chain | Shimano LG500, 9/10/11 speed |
Pedal | VP-536 nylon platform |
Max chainring size | 1x: 32T (52mm chainline), 34T (55mm chainline) |
Saddle | Bontrager Verse Short, stainless steel rails |
---|---|
*Seatpost | Size:XS, S TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length |
Size:M TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length |
|
Size:M/L, L, XL TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length |
|
*Handlebar | Size:XS, S Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
Size:M, M/L, L, XL Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width |
|
Grips | Bontrager XR Trail Comp, nylon lock-on |
*Stem | Size:XS, S Bontrager Comp, 31.8mm, 7 degree, 35mm length |
Size:M, M/L, L, XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
|
Headset | FSA IS-2, 1-1/8'' top, 1.5'' bottom |
*Brake rotor | Size:XS, S, M, M/L, L, XL Tektro, centerlock, 180mm |
Size:XS, S, M, M/L, L, XL Tektro, centerlock, 203mm |
|
Brake Set | Tektro HD-M275 hydraulic disc |
Rotor size | Max brake rotor sizes - Frame: 180mm, Fork: see fork manufacturer |
Weight | M - 14.40 kg / 31.75 lbs |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
