Rail 9.8 XT Gen 3

370.00
1776.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Features

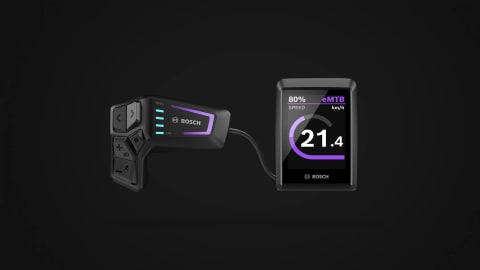

          Bosch smart system

          The new Bosch smart system gives you an eMTB that's more connected than ever. The new LED remote connects with the new Bosch eBike Flow app via Bluetooth. You get tons of useful features at your fingers, and over-the-air system upgrades.

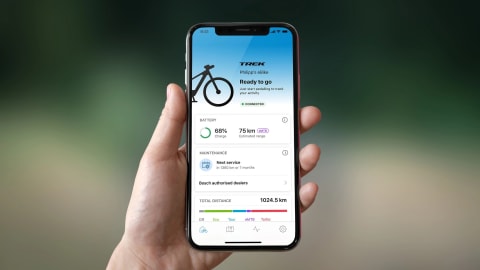

          Bosch eBike Flow app

          The new eBike Flow app turns your ride into a personalized experience. Use it to customize your motor's assist behavior, track your ride stats, and integrate your data with apps like Strava and Apple Health. There's even handy features like navigation and service reminders.

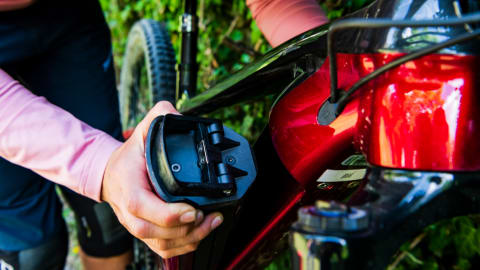

          Removable Integrated Battery

          RIB is a one-piece battery and cover with a built-in handle that can easily be removed and re-installed in the frame with no tools and no hassle. It’s the most convenient way to remove your battery for transport, security, or just easier charging.

          RockShox Super Deluxe with Thru Shaft

          With the all-new RockShox Super Deluxe Ultimate Thru Shaft, you get the most refined shock on the market, with an updated air spring and an exclusive Thru Shaft damper that gives you tenacious grip, plush control, and the support you need for ripping rough descents all day.

          What is the range?

          To see how far you can ride your electric mountain bike on a single charge, check out Bosch’s range calculator. We’ve auto-filled the variables for this bike model and the average rider, but you can make adjustments to get your most accurate estimate.

          Compliant with leading safety regulations

          The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification—so all you have to worry about is where your e-bike will take you next.

          Specs

          Frame NEW OCLV Mountain Carbon main frame, 1.8'' lower head tube, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
          Fork RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimized crown, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
          Shock RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230mm x 57.5mm
          Max compatible fork travel 170mm (580mm axle-to-crown)
          Wheel front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
          Wheel rear Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
          Skewer rear Bontrager Switch thru axle, removable lever
          *Tire Size:M, L, XL
          Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
          Size:M, L, XL
          Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
          Tire part Bontrager TLR sealant, 6oz
          Rim strip Bontrager TLR
          Max tire size Frame: 29x2.60", Fork: See manufacturer
          Battery Bosch PowerTube 750Wh, smart system
          Charger Bosch standard 4A, 110V, smart system
          *Computer Size:M, L, XL
          Bosch Kiox 300, smart system
          Size:M, L, XL
          Bosch LED remote, smart system
          Motor Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
          Shifter Shimano XT M8100, 12 speed
          Rear derailleur Shimano XT M8100, long cage
          Crank E*thirteen E*spec Plus, 165mm length
          Chainring E*thirteen, 34T, steel
          Cassette Shimano XT M8100, 10-51, 12 speed
          Chain Shimano XT M8100, 12 speed
          Pedal VP-536 nylon platform
          Max chainring size 1x: 34T
          Saddle Bontrager Arvada, austenite rails, 138mm width
          *Seatpost Size:M
          Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
          Size:L
          Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
          Size:XL
          Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
          Handlebar Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
          Grips Bontrager XR Trail Elite, nylon lock-on
          Stem Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length
          Headset Knock Block Integrated, cartridge bearing, 1-1/8'' top, 1.8'' bottom
          Brake Shimano XT M8120 4-piston hydraulic disc
          Brake rotor Shimano RT76, 6-bolt, 203mm
          Weight M - 23.40 kg / 51.59 lbs (with TLR sealant, no tubes)
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
