Rail 7 Gen 2

360.00
1728.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Features

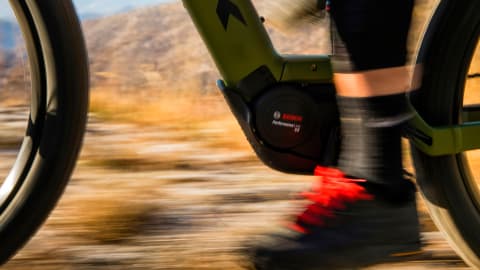

          Bosch Performance Line CX motor

          Bosch Performance Line CX sets the standard for eMTB performance with up to 85Nm of torque and an intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

          Custom eMTB Lite mode

          Trek eMTBs feature a custom eMTB Lite mode in place of Tour mode. It gives you more natural-feeling power delivery and longer battery life.

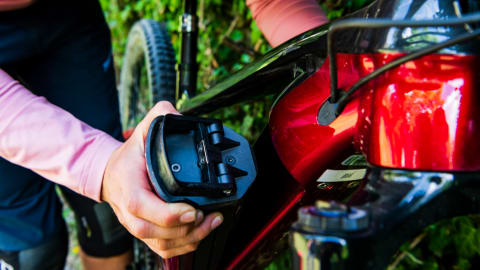

          Removable Integrated Battery

          RIB is a one-piece battery and cover with a built-in handle that can easily be removed and re-installed in the frame with no tools and no hassle. It’s the most convenient way to remove your battery for transport, security, or just easier charging.

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

          What is the range?

          To see how far you can ride your electric mountain bike on a single charge, check out Bosch’s range calculator. We’ve auto-filled the variables for this bike model and the average rider, but you can make adjustments to get your most accurate estimate.

          Compliant with leading safety regulations

          The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification—so all you have to worry about is where your e-bike will take you next.

          Specs

          Frame Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
          Fork RockShox Domain RC, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel
          Shock RockShox Deluxe Select+, 230mm x 57.5mm
          Max compatible fork travel 170mm (580mm axle-to-crown)
          Wheel front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
          Wheel rear Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
          Skewer rear Bontrager Switch thru axle, removable lever
          Tire Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50''
          Tire part Bontrager TLR sealant, 6oz
          Rim strip Bontrager TLR
          Max tire size Frame: 29x2.60", Fork: See manufacturer
          Battery Bosch PowerTube 625Wh
          Charger Bosch standard 4A, 100-240V
          Computer Bosch Purion
          Motor Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist
          Shifter Shimano SLX M7100, 12 speed
          Rear derailleur Shimano XT M8100, long cage
          Crank E*thirteen E*spec Plus, 165mm length
          Chainring E*thirteen, 34T, steel
          Cassette Shimano Deore M6100, 10-51, 12 speed
          Chain Shimano SLX M7100, 12 speed
          Pedal VP-536 nylon platform
          Max chainring size 1x: 34T
          Saddle Bontrager Arvada, steel rails, 138mm width
          *Seatpost Size:S
          TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length
          Size:M, L, XL
          TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length
          Handlebar Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width
          Grips Bontrager XR Trail Comp, nylon lock-on
          Stem Bontrager Rhythm Comp, 31.8mm, 0 degree, 50mm length
          Headset Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
          Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
          Brake rotor Shimano RT76, 6-bolt, 203mm
          Weight M - 24.01 kg / 52.94 lbs (with TLR sealant, no tubes)
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cago) of 300 pounds (136 kg).
