Marlin Gen 3 Frameset

250.00
1200.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Features

          Expanded size range

          With 8 different sizes, Marlin has a bike made to fit every rider. Each frame is equipped with smart wheel sizing, with XXS frames rolling on 26" wheels, and wheel sizes increasing proportionally along with frame sizes, so every rider gets the fit they need.

          Trail-ready, Upgrade-ready

          The secret to Marlin's popularity is a real trail-savvy mountain bike frame that's upgrade compatible, so it can grow with you as you take on bigger trails and tougher features.

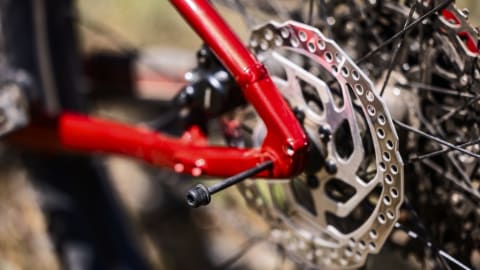

          Roll stronger with Thru Skew

          Goodbye open dropouts. The Thru Skewer is a better, stronger, more precisely aligned rear wheel retention system that keeps your wheel more secure than quick-release skewers while still using the standard 135mm rear hub spacing.

          Specs

          *Frame Size:XXS , XS
          Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
          Size:S , M , ML , L , XL , XXL
          Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
          Max compatible fork travel 120mm, XXS: 80mm
          Skewer rear 173x5mm QR
          Max tire size Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer
          Max chainring size 1x: 34T, 2x: 36/22
          Headset Semi-integrated, 1-1/8''
          Rotor size Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
