Marlin+ 8

Features

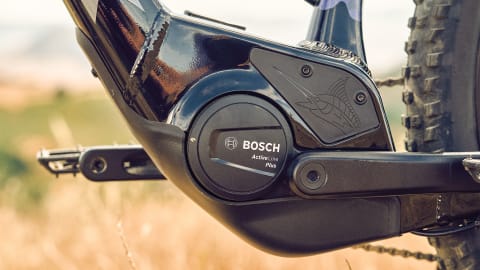

Smooth, quiet support

Bosch Active Line Plus mid-power motor doles out a smooth 50Nm of torque. Its controlled acceleration, low pedal resistance, and super quiet operation give you a natural-feeling, unobtrusive ride.

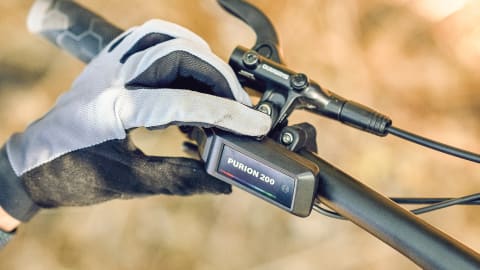

Clean, simple controls

The 2-in-1 remote and display provides all the information and control you'll need in a compact, full-color handlebar controller with intuitive contols.

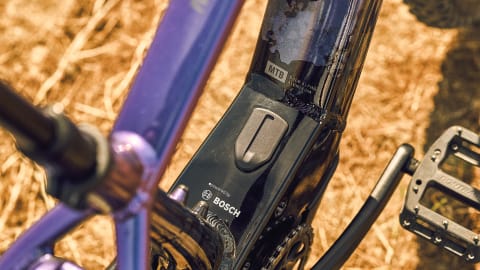

System safety taken seriously

Trek sets its e-bike safety standards high with UL certified e-systems, sophisticated battery management failsafe systems and battery cells from tier 1 suppliers.

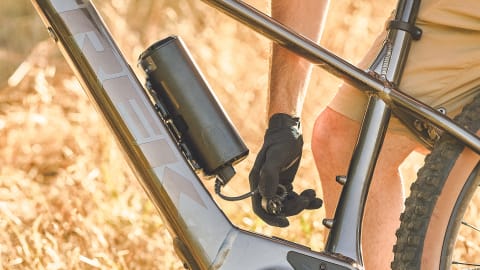

Ride more and smile more with PowerMore

Wanna ride farther? Add PowerMore to your Marlin+. This booster battery extends your range, so you get more supported ride time.

Shimano Deore

Shimano Deore brings even more adventure with a wider range of gear choices for the steep stuff, the fast stuff, and the fun. With smooth riding, improved chain stability, and sharp shifting, Deore heightens your mountain biking confidence and control so you can focus on the trail and enjoy the ride.

Compliant with leading safety regulations

The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification—so all you have to worry about is where your e-bike will take you next.

Specs

*Frame	Size:XS Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
	Size:S , M , L , XL Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
*Fork	Size:XS RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 100mm travel
	Size:S RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
	Size:M , L , XL RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel

Hub front	Shimano TC500 alloy, centerlock, 110x15mm thru axle
Hub rear	Shimano TC500 alloy, centerlock, 148x12mm thru axle
Skewer rear	Bontrager Switch thru axle, removable lever
*Rim	Size:XS , S , M , L , XL Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
	Size:XS , S , M , L , XL Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
*Tire	Size:XS , S Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60''
	Size:M , L , XL Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60''
Tire part	Bontrager TLR sealant, 6oz
Rim strip	Bontrager TLR

Battery	Bosch CompactTube 400Wh
Charger	Bosch standard 2A, 110V, smart system
Computer	Bosch Purion 200
Motor	Bosch Active Line Plus

Shifter	Shimano Deore M6100, 12 speed
Rear derailleur	Shimano Deore M6100, long cage
Crank	FSA CK-220, 165mm length
Chainring	FSA, 32T, steel
Cassette	Shimano Deore M6100, 10-51, 12 speed
Chain	Shimano Deore M6100, 12 speed
Pedal	VP-536 nylon platform

*Saddle	Size:XS , S , M , L , XL Bontrager Verse P3, chromoly rails
	Size:XS , S , M , L , XL Bontrager Arvada, hollow chromoly rails, 138mm width
*Seatpost	Size:XS , S TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length
	Size:M , L , XL TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length
*Handlebar	Size:XS , S Bontrager alloy, 31.8mm, 15mm rise, 720mm width
	Size:M , L , XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
*Stem	Size:XS , S Bontrager Comp, 31.8mm, 7 degree, 35mm length
	Size:M , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
	Size:XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Headset	Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8'' top, 1.5'' bottom
Brake	Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
Brake rotor	Shimano RT64, centerlock, 203mm

Weight	M - 21.30 kg / 46.96 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
