Marlin 7 Gen 3

500.00
2400.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Features

          Expanded size range

          With 8 different sizes, Marlin has a bike made to fit every rider. Each frame is equipped with smart wheel sizing, with XXS frames rolling on 26" wheels, and wheel sizes increasing proportionally along with frame sizes, so every rider gets the fit they need.

          Trail-ready, Upgrade-ready

          The secret to Marlin's popularity is a real trail-savvy mountain bike frame that's upgrade compatible, so it can grow with you as you take on bigger trails and tougher features.

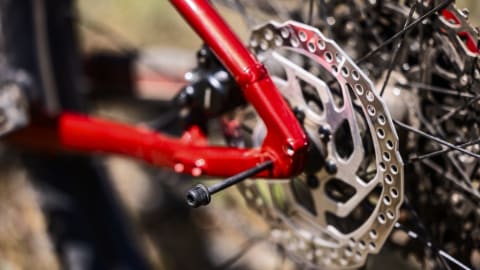

          Roll stronger with Thru Skew

          Goodbye open dropouts. The Thru Skewer is a better, stronger, more precisely aligned rear wheel retention system that keeps your wheel more secure than quick-release skewers while still using the standard 135mm rear hub spacing.

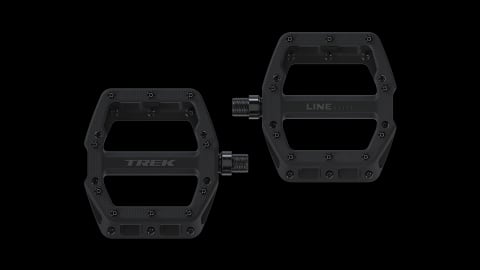

          Upgrade your pedals and love your bike more

          Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.

          Specs

          *Frame Size:XS
          Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
          Size:S , M , ML , L , XL , XXL
          Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
          *Fork Size:XS , S
          RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
          Size:M , ML , L , XL , XXL
          RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
          Max compatible fork travel 120mm, XXS: 80mm
          Hub front Formula DC-20, alloy, 6-bolt, 100mm ThruSkew
          Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
          Skewer rear Bontrager Switch thru axle
          Rim Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
          *Tire Size:XS , S
          Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40''
          Size:M , ML , L , XL , XXL
          Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40''
          Max tire size Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer
          Shifter Shimano Deore M4100, 10 speed
          Rear derailleur Shimano Deore M5120, long cage
          *Crank Size:XS , S , M
          FSA Alpha Drive, 28T steel ring, 55mm chainline, 170mm length
          Size:ML , L , XL , XXL
          FSA Alpha Drive, 28T steel ring, 55mm chainline, 175mm length
          Bottom bracket FSA, 73mm, threaded cartridge, 122.5mm spindle
          Cassette Shimano Deore M4100, 11-46, 10 speed
          Chain KMC X10, 10 speed
          Pedal VP-536 nylon platform
          Max chainring size 1x: 34T, 2x: 36/22
          Saddle Bontrager Arvada, steel rails, 138mm width
          *Seatpost Size:XS , S , M
          Bontrager alloy, 31.6mm, 12mm offset, 330mm length
          Size:ML , L , XL , XXL
          Bontrager alloy, 31.6mm, 12mm offset, 400mm length
          *Handlebar Size:XS
          Bontrager alloy, 31.8mm, 5mm rise, 690mm width
          Size:S
          Bontrager alloy, 31.8mm, 15mm rise, 720mm width
          Size:M , ML , L , XL , XXL
          Bontrager alloy, 31.8mm, 15mm rise, 750mm width
          Grips Bontrager XR Trail Comp, nylon lock-on
          *Stem Size:XS , S
          Bontrager Comp, 31.8mm, 7 degree, 35mm length
          Size:M , ML , L
          Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
          Size:XL
          Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
          Size:XXL
          Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
          Headset Semi-integrated, 1-1/8''
          Brake Shimano MT200 hydraulic disc
          *Brake rotor Size:XS , S , M , ML , L , XL , XXL
          Shimano RT26, 6-bolt,160mm
          Size:M , ML , L , XL , XXL
          Shimano RT26, 6-bolt,180mm
          Brake Set Shimano MT200 hydraulic disc
          Rotor size Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer
          Weight M - 14.60 kg / 32.19 lbs
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
