          Features

          Will my bike have a curved top tube?

          Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

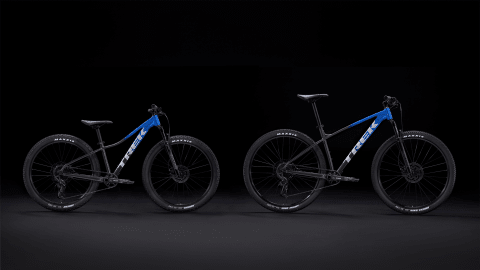

          Fit for every rider

          Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures you’re on the fastest wheel that fits. The smallest sizes even come with short-reach brake levers and narrower handlebars that give smaller riders better comfort and control.

          High tech, high value

          Marlin looks and feels great. It’s packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements.

          Specs

          *Frame Size:XS , S
          Alpha Silver Aluminum, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
          Size:M , ML , L , XL , XXL
          Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
          *Fork Size:XS
          SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
          Size:S
          SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
          Size:M , ML , L , XL , XXL
          SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
          Max compatible fork travel 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)
          Hub front Formula DC-20, alloy, 6-bolt, 5x100mm QR
          Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
          Skewer rear 152x5mm QR
          Rim Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
          *Tire Size:XS , S
          Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
          Size:M , ML , L , XL , XXL
          Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
          Max tire size Frame: 29x2.20" (XS & S: 27.5x2.40"), Fork: See manufacturer
          Shifter Shimano Deore M4100, 10 speed
          Rear derailleur Shimano Deore M5120, long cage
          Crank Prowheel C10Y-NW, 30T steel narrow-wide ring, 170mm length
          Bottom bracket Sealed cartridge, 73mm
          Cassette Shimano Deore M4100, 11-46, 10 speed
          Chain KMC X10, 10 speed
          Pedal VP-536 nylon platform
          Max chainring size 1x/2x: 34T, 3x: 42T
          Saddle Bontrager Arvada, steel rails, 138mm width
          *Seatpost Size:XS , S , M
          Bontrager alloy, 31.6mm, 12mm offset, 330mm length
          Size:ML , L , XL , XXL
          Bontrager alloy, 31.6mm, 12mm offset, 400mm length
          *Handlebar Size:XS
          Bontrager alloy, 31.8mm, 5mm rise, 690mm width
          Size:S , M , ML , L , XL , XXL
          Bontrager alloy, 31.8mm, 5mm rise, 720mm width
          Grips Bontrager XR Endurance Comp, lock-on
          *Stem Size:XS
          Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
          Size:S
          Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
          Size:M
          Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
          Size:ML , L
          Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 80mm length
          Size:XL , XXL
          Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length
          Headset Semi-integrated, 1-1/8''
          Brake Tektro HD-M275 hydraulic disc, 180mm rotor
          Brake Set Tektro HD-M275 hydraulic disc, 160mm rotor
          Weight M - 14.11 kg / 31.11 lbs
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
