Fuel EX C Gen 5 Frameset

490.00
2352.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Features

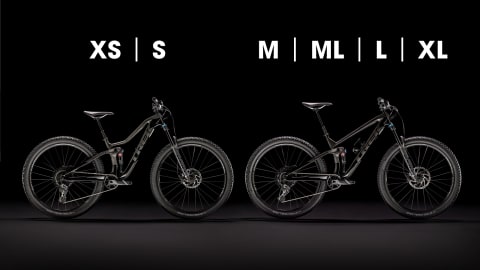

          Will my bike have a curved top tube?

          Smaller frames (XS and S) have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

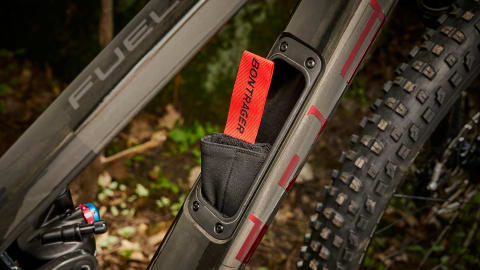

          Internal Storage

          Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

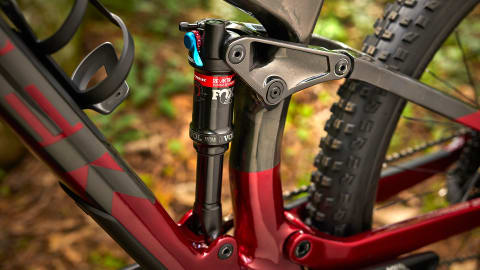

          RE:aktiv with Thru Shaft

          RE:aktiv with Thru Shaft gives you unmatched grip and control with a shock that reacts to the terrain faster than anything else out there.

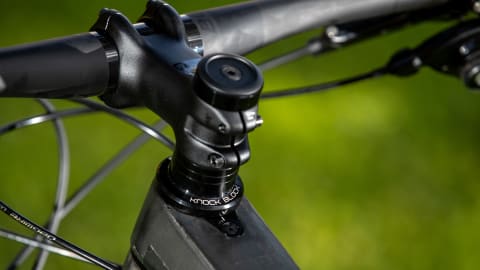

          Straight Shot w/Knock Block

          Trek's Straight Shot frame design optimizes the stiffness-to-weight ratio for a more responsive ride. You'll be able to push harder and stay more planted on your line when the going gets rough.

          Specs

          Frame OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
          *Shock Size:XS , S
          Fox Factory Float EVOL, RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 210x52.5mm
          Size:S , M , ML , L , XL
          Fox Factory Float EVOL, RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 210x55mm
          Max compatible fork travel 150mm (561mm axle-to-crown)
          Skewer rear Bontrager Switch thru axle, removable lever
          Max tire size 29x2.60"
          Max chainring size 1x: 34T
          *Stem Size:XS , S
          Bontrager Line Pro, 35mm, 0 degree, 40mm length
          Size:M , ML , L , XL
          Bontrager Line Pro, 35mm, 0 degree, 50mm length
          Size:M , ML , L , XL
          Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length
          Headset Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
          Bag Bontrager BITS Internal Frame Storage Bag
          Weight M - 3.15 kg / 6.95 lbs
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
