Fuel EX AL Gen 6 Frameset

380.00
1824.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Features

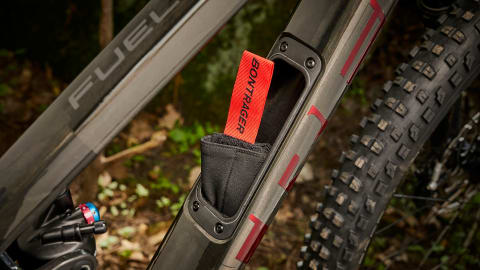

          Internal Storage

          Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

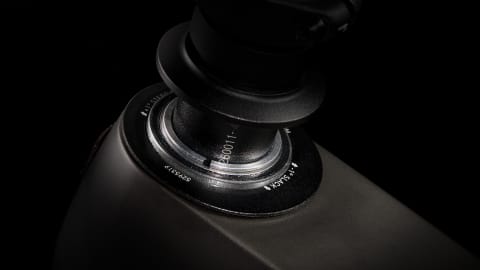

          Slack or steep, the choice is yours

          Install angle adjust headset cups (sold separately) to tweak the 64.5-degree head tube angle a degree steeper or slacker to your liking — all without impacting your bottom bracket height.

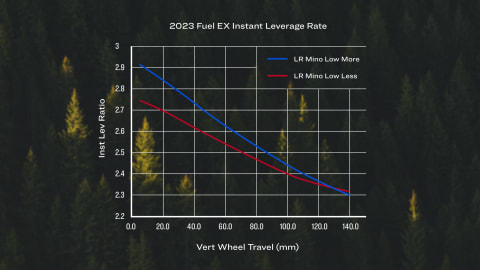

          Adjust the sus for full send

          Adjust leverage rate with just a flip of a chip. Ride it in the Less progressive setting for a plusher feel perfect for rugged trails with square-edge bumps. Flip it to More progressive when you're hitting big features and don’t want to bottom-out, or when you want to run a coil shock.

          Size-specific stays

          Size-specific chainstays provide balanced handling to keep the ride nimble for smaller riders and improve front wheel traction on climbs for taller riders.

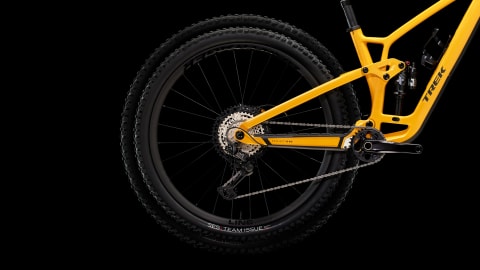

          Business in the front, party in the back

          Craving the nimble ride of 27.5 wheels but don’t want to sacrifice the speed of a 29er? No need to choose. Fuel EX is mullet-ready, just throw Mino Link in high, toss on a 160mm fork, and get ready to party.

          Specs

          Frame Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
          Shock Fox Performance Float X, 2-position damper, 185mm x 55mm
          Max compatible fork travel 160mm
          Skewer rear Bontrager Switch thru axle, removable lever
          Max tire size Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer
          Max chainring size 1x: 34T round, 32T oval, min 28T
          Headset Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
          Rotor size Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
          Bag Bontrager BITS Internal Frame Storage Bag
          Weight M - 4.60 kg / 10.15 lbs
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
