Fuel EX AL Gen 5 Frameset

490.00
2352.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Features

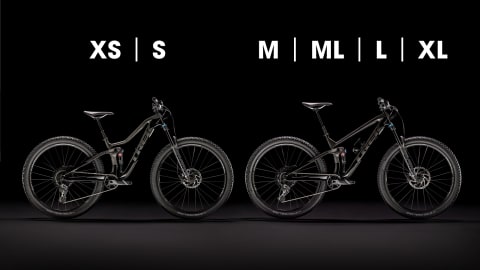

          Will my bike have a curved top tube?

          Smaller frames (XS and S) have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

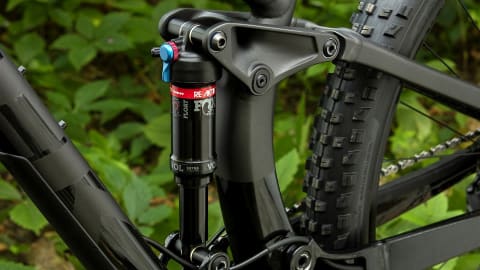

          RE:aktiv

          RE:aktiv technology gives you firm support for efficient pedaling that instantly gives way for smooth control when the trail turns rough.

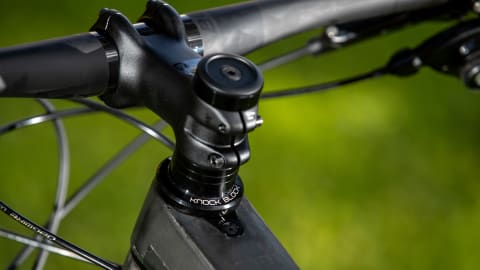

          Straight Shot w/Knock Block

          Trek's Straight Shot frame design optimizes the stiffness-to-weight ratio for a more responsive ride. You'll be able to push harder and stay more planted on your line when the going gets rough.

          Specs

          Frame Alpha Platinum Aluminum, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
          *Shock Size:XS , S
          Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210mm x 52.5mm
          Size:S , M , ML , L , XL , XXL
          Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210mm x 55mm
          Max compatible fork travel 150mm (561mm axle-to-crown)
          Skewer rear Bontrager Switch thru axle, removable lever
          Max tire size 29x2.60"
          Max chainring size 1x: 34T
          *Stem Size:XS , S
          Bontrager Line, 35mm, 0 degree, 40mm length
          Size:M , ML , L , XL , XXL
          Bontrager Line, 35mm, 0 degree, 50mm length
          Headset Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
          Weight M - 3.71 kg / 8.19 lbs
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
