Fuel EX 9.7 Gen 6

350.00
1680.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Features

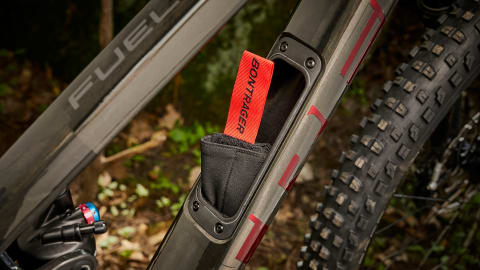

          Internal Storage

          Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

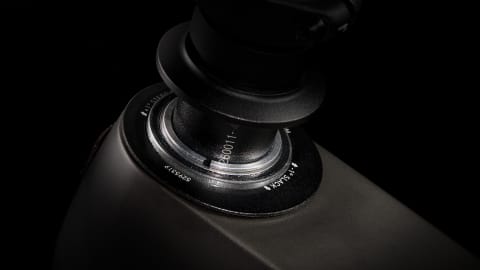

          Slack or steep, the choice is yours

          Install angle adjust headset cups (sold separately) to tweak the 64.5-degree head tube angle a degree steeper or slacker to your liking — all without impacting your bottom bracket height.

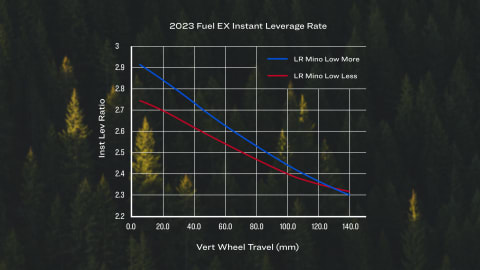

          Adjust the sus for full send

          Adjust leverage rate with just a flip of a chip. Ride it in the Less progressive setting for a plusher feel perfect for rugged trails with square-edge bumps. Flip it to More progressive when you're hitting big features and don’t want to bottom-out, or when you want to run a coil shock.

          Size-specific stays

          Size-specific chainstays provide balanced handling to keep the ride nimble for smaller riders and improve front wheel traction on climbs for taller riders.

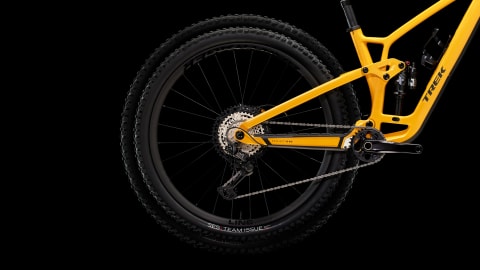

          Business in the front, party in the back

          Craving the nimble ride of 27.5 wheels but don’t want to sacrifice the speed of a 29er? No need to choose. Fuel EX is mullet-ready, just throw Mino Link in high, toss on a 160mm fork, and get ready to party.

          Shimano XT

          Shimano XT is the original mountain bike groupset and trusted by generations of mountain bikers around the world. Whatever the trail, wherever you ride, XT is your solution for mountain biking today. Reliable shifting. Superior braking. Intuitive maintenance. XT is the high performance workhorse you can count on.

          Specs

          Frame OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
          *Fork Size:XS , S
          Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel
          Size:S , M , ML , L , XL
          Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
          Shock Fox Performance Float X, 2-position damper, 185mm x 55mm
          Max compatible fork travel 160mm
          *Wheel front Size:XS , S
          Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''
          Size:S , M , ML , L , XL
          Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
          *Wheel rear Size:XS , S
          Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5''
          Size:XS , S
          Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle, 27.5''
          Size:S , M , ML , L , XL
          Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
          Size:S , M , ML , L , XL
          Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
          Skewer rear Bontrager Switch thru axle, removable lever
          Rim Bontrager Line Comp 30, Tubeless Ready
          Rim strip Bontrager TLR
          Max tire size Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer
          Shifter Shimano SLX M7100, 12 speed
          Rear derailleur Shimano XT M8100, long cage
          Crank Shimano Deore M6120, 30T ring, 55mm chainline, 170mm length
          Bottom bracket Shimano SM-BB52, 73mm, threaded external bearing
          Cassette Shimano SLX M7100, 10-51T, 12 speed
          Chain Shimano SLX M7100, 12 speed
          Max chainring size 1x: 34T round, 32T oval, min 28T
          Saddle Bontrager Arvada, hollow chromoly rails, 138mm width
          *Seatpost Size:XS , S
          TranzX JD-YSP39, 100mm travel, internal routing, 34.9mm
          Size:M , ML
          TranzX JD-YSP39, 150mm travel, internal routing, 34.9mm
          Size:L , XL
          TranzX JD-YSP39, 170mm travel, internal routing, 34.9mm
          *Handlebar Size:XS , S
          Bontrager Line, alloy, 35mm, 27.5mm rise, 750mm width
          Size:M , ML , L , XL
          Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
          Grips Bontrager XR Trail Elite, nylon lock-on
          *Stem Size:XS , S
          Bontrager Elite, 35mm, 0 degree, 35mm length
          Size:M , ML , L , XL
          Bontrager Elite, 35mm, 0 degree, 45mm length
          Headset Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
          Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
          *Brake rotor Size:XS , S , M , ML , L , XL
          Shimano RT66, 6-bolt, 180mm
          Size:M , ML , L , XL
          Shimano RT66, 6-bolt, 203mm
          Rotor size Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
          Bag Bontrager BITS Internal Frame Storage Bag
          Weight M - 14.76 kg / 32.55 lbs (with TLR sealant, no tubes)
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
