Domane SL 5 Gen 4

Features

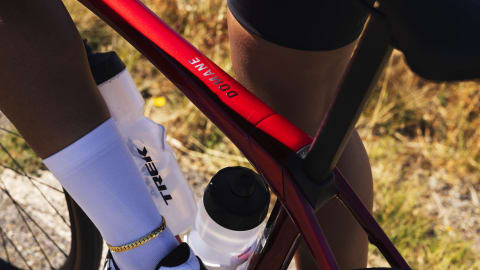

The smooth advantage

Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger longer.

Podium-topping speed

Raced to victory on the infamous cobblestones of Paris-Roubaix, the new carbon Domane is faster than ever thanks to new aerodynamic improvements and an ultra-light design.

Lighter than ever

Light and strong 500 Series OCLV Carbon and a new gram-saving design make this the lightest Domane SL disc ever.

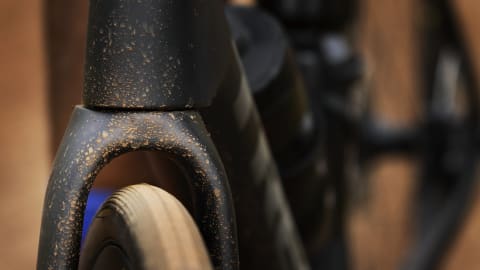

Versatile tire clearance

Comes equipped with fast rolling 32mm tires, but offers clearance for up to 38mm tires so you can confidently ride everything from smooth pavement to light gravel.

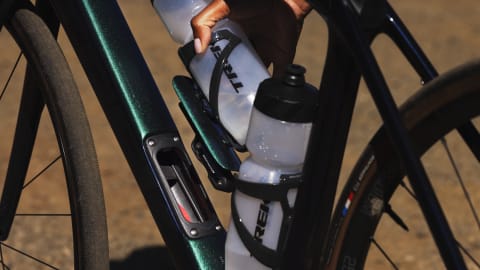

Internal storage

Internal downtube storage and top tube bag mounts make it easy to carry everything you need for all-day rides.

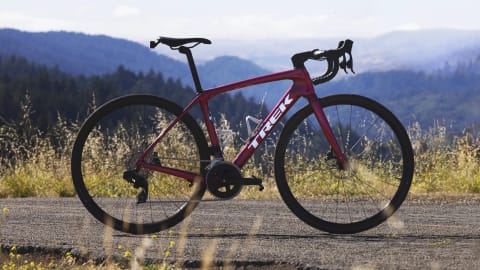

Refined integration

Domane is more integrated than ever, with hidden cables and a hidden seatpost clamp.

Shimano 105

With shift technology inherited from mechanical Ultegra and Dura-Ace, Shimano 105 gives you top-shelf shifting at a budget friendly price. Whether you're commuting year-round or training for the big race, Shimano 105 is a workhorse drivetrain that won't hold you back as you grow in the sport.

Specs

Frame	500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Fork	Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Weight	56 - 8.93 kg / 19.69 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Shifter	Shimano 105 R7120, 12 speed
Front derailleur	Shimano 105 R7100, braze-on, down swing
Rear derailleur	Shimano 105 R7100, 36T max cog
*Crank	Size:44, 47 Shimano 105 R7100, 50/34, 165mm length
	Size:50, 52 Shimano 105 R7100, 50/34, 170mm length
	Size:54, 56 Shimano 105 R7100, 50/34, 172.5mm length
	Size:58, 60, 62 Shimano 105 R7100, 50/34, 175mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano 105 7101, 11-34, 12 speed
Chain	Shimano SLX M7100, 12 speed
Max chainring size	1x: 48T, 2x: 52/36

Hub front	Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Hub rear	Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear	Bontrager Switch thru axle, removable lever
Rim	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Tire	Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm
Tire part	Bontrager TLR sealant, 6oz
Rim strip	Bontrager TLR
Max tire size	38mm without fenders, 35mm with fenders

*Saddle	Size:44, 47, 50, 52 Verse Short Comp, steel rails, 155mm width
	Size:54, 56, 58, 60, 62 Verse Short Comp, steel rails, 145mm width
*Seatpost	Size:44, 47, 50, 52, 54, 56 KVF aero carbon seatpost, 20mm offset, 280mm length
	Size:58, 60, 62 KVF aero carbon seatpost, 20mm offset, 320mm length
*Handlebar	Size:44, 47 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width
	Size:50 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width
	Size:52 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width
	Size:54, 56 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width
	Size:58, 60, 62 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size:44 Trek RCS Pro, -7 degree, 60mm length
	Size:47 Trek RCS Pro, -7 degree, 70mm length
	Size:50 Trek RCS Pro, -7 degree, 80mm length
	Size:52, 54 Trek RCS Pro, -7 degree, 90mm length
	Size:56, 58 Trek RCS Pro, -7 degree, 100mm length
	Size:60, 62 Trek RCS Pro, -7 degree, 110mm length
Brake	Shimano 105 hydraulic disc, flat mount
Brake rotor	Shimano RT70, centerlock, 160mm
Rotor size	Max brake rotor sizes: 160mm front & rear

Bag	Bontrager BITS Internal Frame Storage Bag
