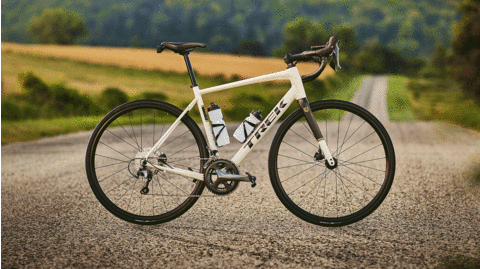

Domane AL 5 Gen 4

Features

Lightweight design

A new full carbon fork and updated frame design helps shave around half a pound from the previous generation Domane AL Disc.

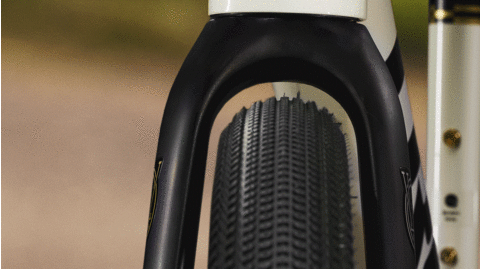

Right for any road

Room for bigger tires let you ride everything from smooth pavement to most gravel roads in comfort.

Long-haul comfort

A more upright road riding position keeps you comfortable, confident, and efficient during long days in the saddle.

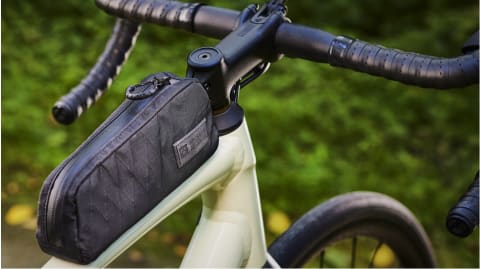

Pack it up, pack it in

Mounts for a top tube bag, rack, fenders and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.

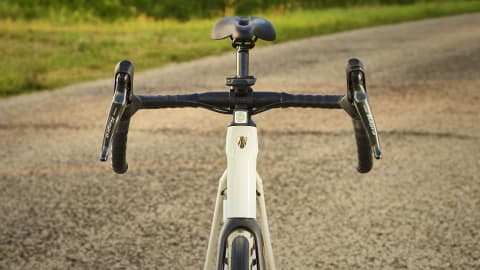

Modern ergonomics, premium integration

A modern handlebar with 4cm of flare between the drops and hoods put you in a more comfortable position, and new hidden cable routing offers premium integration typically found on more expensive models.

High-value performance

Domane AL Disc is built in Trek's road race heritage, which means it's a road bike you won't outgrow as your rides get longer and faster.

Shimano 105

With shift technology inherited from mechanical Ultegra and Dura-Ace, Shimano 105 gives you top-shelf shifting at a budget friendly price. Whether you're commuting year-round or training for the big race, Shimano 105 is a workhorse drivetrain that won't hold you back as you grow in the sport.

Specs

Frame	100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
Fork	Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Weight	56 - 9.85 kg / 21.72 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Shifter	Shimano 105 R7120, 12 speed
Front derailleur	Shimano 105 R7100, 31.8mm clamp, down swing
Rear derailleur	Shimano 105 R7100, 36T max cog
*Crank	Size:49, 52 Shimano 105 R7100, 50/34, 170mm length
	Size:54, 56 Shimano 105 R7100, 50/34, 172.5mm length
	Size:58, 61 Shimano 105 R7100, 50/34, 175mm length
*Bottom bracket	Size:49, 52, 54, 56, 58, 61 Shimano RS501 BSA
	Size:49, 52, 54, 56, 58, 61 Shimano RS500, 68mm, threaded external
Cassette	Shimano 105 7101, 11-34, 12 speed
Chain	Shimano SLX M7100, 12 speed
Max chainring size	1x: 50T, 2x: 50/34

Hub front	Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front	Bontrager Switch chamfered thru axle, removable lever
Hub rear	Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear	Bontrager Switch chamfered thru axle, removable lever
Rim	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes	14g stainless steel, black
Tire	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Max tire size	38mm without fenders, 35mm with fenders

Saddle	Verse Short, steel rails, 145mm width
*Seatpost	Size:49 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
	Size:52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
*Handlebar	Size:49 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width
	Size:52 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width
	Size:54, 56 Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 42cm width
	Size:58, 61 Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size:49 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
	Size:52, 54 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
	Size:56, 58 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
	Size:61 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Brake	Shimano 105 hydraulic disc, flat mount
Brake rotor	Shimano RT70, centerlock, 160mm
Rotor size	Max brake rotor sizes: 160mm front & rear
