Domane+ AL 5

Features

Light, powerful, electric

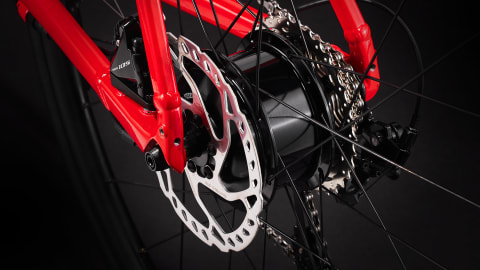

An integrated 250Wh battery is hidden in the downtube and a powerful yet lightweight rear hub motor gives you that extra boost on the road.

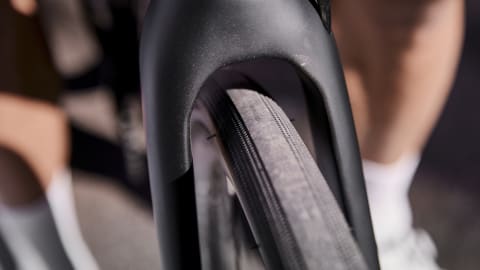

Big tires, big comfort

Clearance for 38mm tires boosts traction for better handling and makes for a comfortable ride on everything from smooth pavement to light gravel.

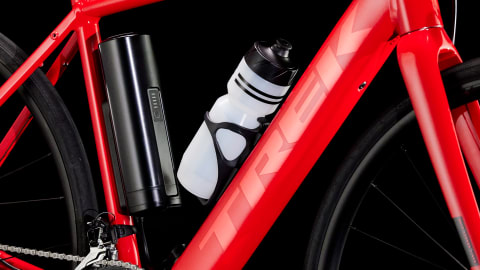

Extend your ride

Double your range with an optional 250Wh Range Extender that can expand your ride to an average of 110mi/177km in Eco mode.

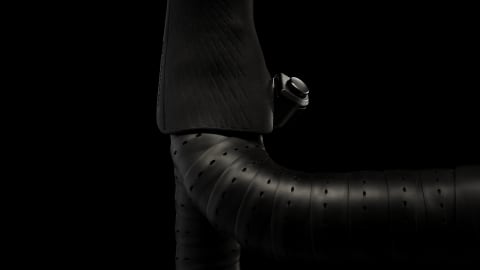

Control in the palm of your hand

Easily toggle between Domane+ AL’s three assist modes without taking your hands off the bars using the intuitive hood-mounted controls.

Shimano 105

With shift technology inherited from mechanical Ultegra and Dura-Ace, Shimano 105 gives you top-shelf shifting at a budget friendly price. Whether you're commuting year-round or training for the big race, Shimano 105 is a workhorse drivetrain that won't hold you back as you grow in the sport.

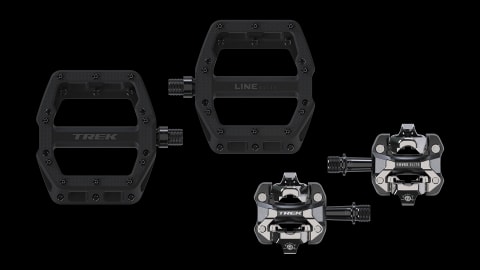

Don’t forget your pedals

This bike doesn’t come with pedals because you’ll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style. We recommend flats for versatility or clipless pedals for control and efficiency.

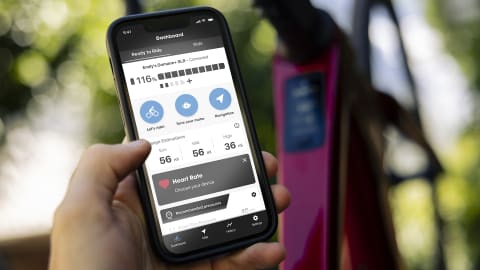

Connect, customize, calculate

The Trek Central app seamlessly connects to your Domane+ for real-time range calculations, activity tracking, and custom motor tuning. Plus, navigation and mapping features help you stay on course wherever you ride.

Specs

Frame	100 Series Alpha Aluminum, hub drive system, tapered head tube, internal routing, flat mount disc, rack and fender mounts
Fork	Domane+ carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Frame fit	Endurance

Weight	56 - 14.06 kg / 31 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Battery	250Wh, integrated in down tube
Charger	2A, 42V output, 100V-240V AC input

*Shifter	Size:49, 52 Shimano 105 R7025, short-reach lever, 11 speed
	Size:54, 56, 58, 61 Shimano 105 R7020, 11 speed
Front derailleur	Shimano 105 R7000, 31.8mm clamp
Rear derailleur	Shimano 105 R7000, long cage, 34T max cog
*Crank	Size:49 FSA Vero Pro, 50/34, 165mm
	Size:52 FSA Vero Pro, 50/34, 170mm
	Size:54, 56 FSA Vero Pro, 50/34, 172.5mm
	Size:58, 61 FSA Vero Pro, 50/34, 175mm
Bottom bracket	Torque sensor, threaded, 110mm spindle
Cassette	Shimano 105 HG700-11, 11-34, 11 speed
Chain	Shimano HG601, 11 speed
Max chainring size	2x: 50/34

Hub front	Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Hub rear	Hyena hub drive motor, 40Nm, 250W
Rim	Bontrager Paradigm, Tubeless Ready, 28-hole, 21mm width, Presta valve
Tire	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Max tire size	38mm without fenders, 32mm with fenders

*Saddle	Size:49, 52 Bontrager Verse Short Comp, steel rails, 155mm width
	Size:54, 56, 58, 61 Bontrager Verse Short Comp, steel rails, 145mm width
Seatpost	Bontrager carbon, 27.2mm, 8mm offset, 330mm length
*Handlebar	Size:49 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width
	Size:52 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width
	Size:54, 56 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width
	Size:58, 61 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size:49 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
	Size:52, 54 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
	Size:56, 58 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
	Size:61 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Headset	FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake	Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin
Brake rotor	Shimano RT66, 6-bolt, 160mm
Rotor size	Max brake rotor sizes: 160mm front & rear
