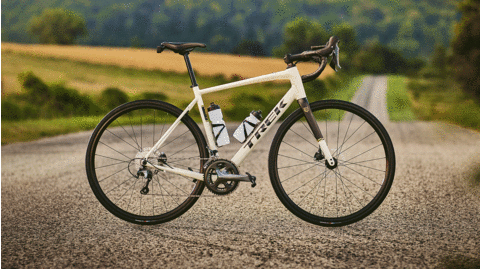

Domane AL 4 Gen 4

455.00
2184.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Features

          Lightweight design

          A new full carbon fork and updated frame design helps shave around half a pound from the previous generation Domane AL Disc.

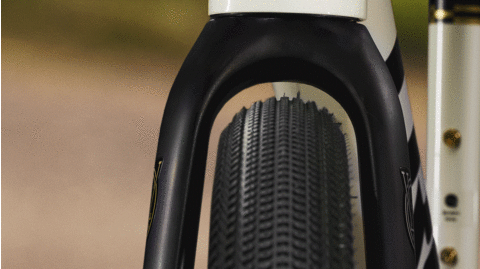

          Right for any road

          Room for bigger tires let you ride everything from smooth pavement to most gravel roads in comfort.

          Long-haul comfort

          A more upright road riding position keeps you comfortable, confident, and efficient during long days in the saddle.

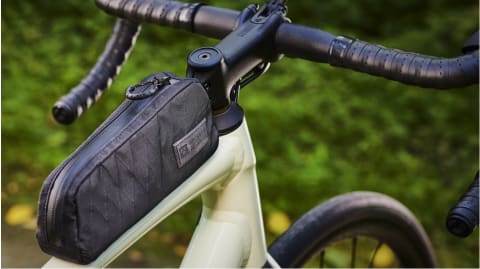

          Pack it up, pack it in

          Mounts for a top tube bag, rack, fenders and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.

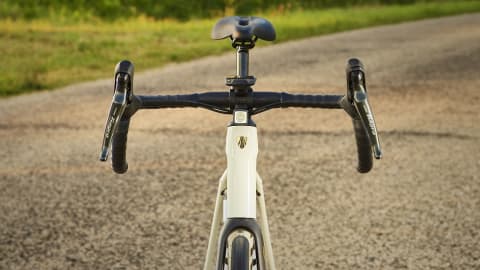

          Modern ergonomics, premium integration

          A modern handlebar with 4cm of flare between the drops and hoods put you in a more comfortable position, and new hidden cable routing offers premium integration typically found on more expensive models.

          High-value performance

          Domane AL Disc is built in Trek's road race heritage, which means it's a road bike you won't outgrow as your rides get longer and faster.

          Specs

          Frame 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle

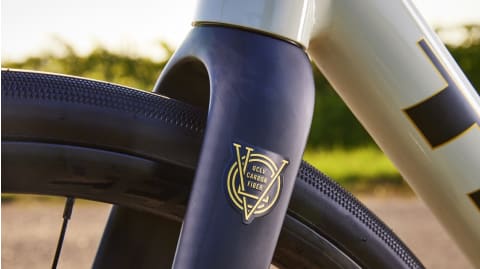

          Fork Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
          Weight 56 - 10.35 kg / 22.82 lbs
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
          Shifter Shimano Tiagra R4720, 10 speed
          Front derailleur Shimano Tiagra 4700, 31.8mm clamp
          Rear derailleur Shimano Tiagra 4700, long cage, 34T max cog
          *Crank Size:44
          Shimano Tiagra 4700, 50/34, 165mm length
          Size:49, 52
          Shimano Tiagra 4700, 50/34, 170mm length
          Size:54, 56
          Shimano Tiagra 4700, 50/34, 172.5mm length
          Size:58, 61
          Shimano Tiagra 4700, 50/34, 175mm length
          Bottom bracket Shimano RS501 BSA
          Cassette Shimano HG500, 11-32, 10 speed
          Chain Shimano Tiagra HG54, 10 speed
          Max chainring size 1x: 50T, 2x: 50/34
          Hub front Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
          Skewer front Bontrager Switch chamfered thru axle, removable lever
          Hub rear Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
          Skewer rear Bontrager Switch chamfered thru axle, removable lever
          Rim Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
          Spokes 14g stainless steel, black
          Tire Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
          Max tire size 38mm without fenders, 35mm with fenders
          Saddle Verse Short, steel rails, 145mm width
          *Seatpost Size:44, 49
          Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
          Size:52, 54, 56, 58, 61
          Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
          *Handlebar Size:44
          Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
          Size:44, 49
          Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width
          Size:49
          Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
          Size:52
          Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
          Size:52
          Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width
          Size:54, 56
          Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
          Size:54, 56
          Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width
          Size:58, 61
          Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width
          Size:58, 61
          Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
          Handlebar tape Bontrager Supertack Perf tape
          *Stem Size:44
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
          Size:49
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
          Size:52, 54
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
          Size:56, 58
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
          Size:61
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
          Brake Shimano Tiagra hydraulic disc, flat mount
          Brake rotor Shimano RT66, 6-bolt, 160mm
          Rotor size Max brake rotor sizes: 160mm front & rear
