Checkpoint SL 7 AXS

Features

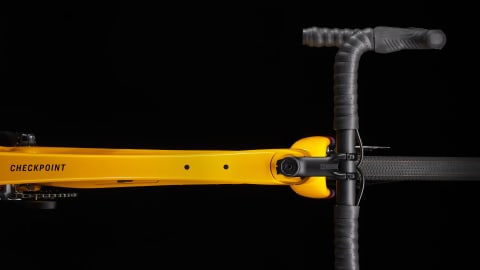

New progressive geometry

For quick, nimble handling that still keeps you stable and in control on rougher descents.

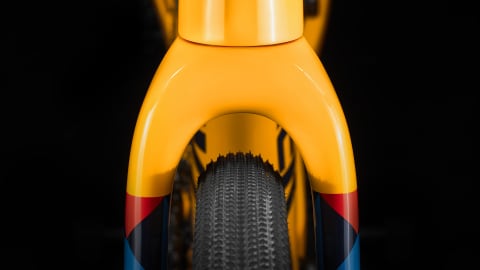

Tire clearance

Lots of clearance means you can run meatier tires (700x45mm or 27.5x2.1") for tackling chunkier gravel and terrain.

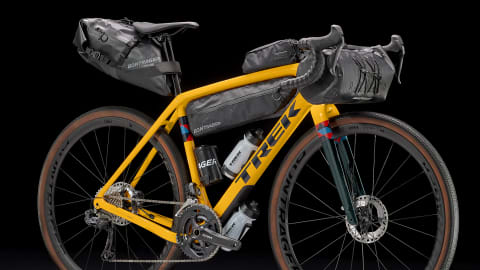

Tons of mounts

Integrated frame bag and fender mounts make it easy to carry gear and water.

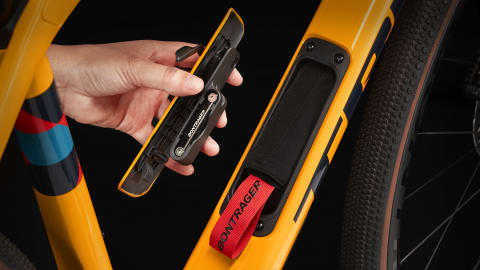

Sleek internal storage

Built-in storage compartment in the downtube lets you stow tools and gear.

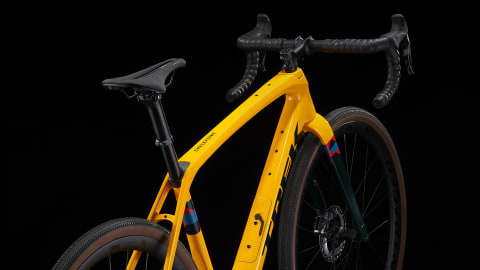

IsoSpeed smooth

The damped, controlled rebound of the IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around.

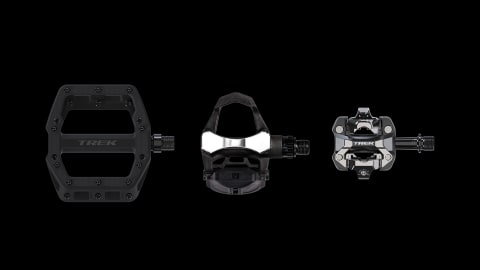

Don’t forget your pedals

This bike doesn’t come with pedals because you’ll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style.

Specs

Frame	500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, dropper post compatible, 142x12mm thru axle
Fork	Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Frame fit	Gravel

Weight	56 - 8.90 kg / 19.63 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Battery	SRAM eTap battery pack (with charger)

Shifter	SRAM Force eTap AXS, 12 speed
Front derailleur	SRAM Force eTap AXS, wide, braze-on
Rear derailleur	SRAM Force eTap AXS, 36T max cog
*Crank	Size:49 SRAM Force, 43/30, DUB Wide, 165mm length
	Size:52 SRAM Force, 43/30, DUB Wide, 170mm length
	Size:54, 56 SRAM Force, 43/30, DUB Wide, 172.5mm length
	Size:58, 61 SRAM Force, 43/30, DUB Wide, 175mm length
Bottom bracket	SRAM DUB, T47 threaded, internal bearing
Cassette	SRAM XG-1270, 10-36, 12 speed
Chain	SRAM Force, 12 speed
Max chainring size	1x: 46T, 2x: 50/37

Wheel front	Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axle
Wheel rear	Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 142x12mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Skewer rear	Bontrager Switch thru axle, removable lever
Tire	Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm
Tire part	Bontrager TLR sealant, 6oz
Rim strip	Bontrager TLR
Max tire size	See service manual

*Saddle	Size:49, 52 Bontrager Verse Comp, steel rails, 155mm width
	Size:54, 56, 58, 61 Bontrager Verse Comp, steel rails, 145mm width
Seatpost	Bontrager carbon, 27.2mm, 8mm offset, 330mm length
*Handlebar	Size:49 Bontrager Elite Gravel, 38cm width
	Size:52 Bontrager Elite Gravel, 40cm width
	Size:54, 56 Bontrager Elite Gravel, 42cm width
	Size:58, 61 Bontrager Elite Gravel, 44cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size:49 Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length
	Size:52, 54 Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length
	Size:56, 58 Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length
	Size:61 Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
Brake	SRAM Force AXS hydraulic disc, flat mount
Brake rotor	SRAM CenterLine X, centerlock, round edge, 160mm
Rotor size	Max brake rotor sizes: 160mm front & rear

Bag	Bontrager BITS Internal Frame Storage Bag
