Checkpoint ALR Frameset

650.00
3120.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Features

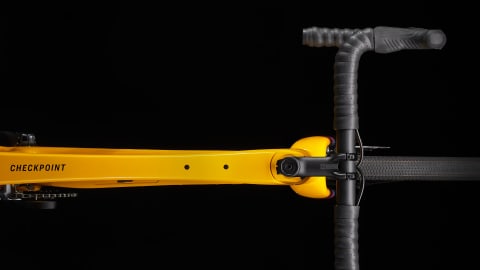

          New progressive geometry

          For quick, nimble handling that still keeps you stable and in control on rougher descents.

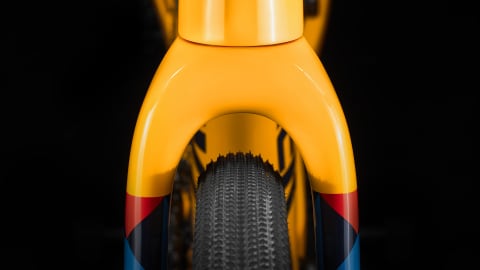

          Tire clearance

          Lots of clearance means you can run meatier tires (700x45mm or 27.5x2.1") for tackling chunkier gravel and terrain.

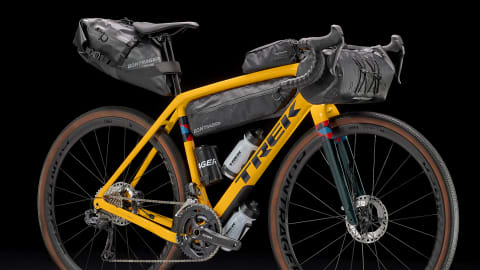

          Tons of mounts

          Integrated frame bag and fender mounts make it easy to carry gear and water.

          Specs

          Frame 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
          Fork Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
          Frame fit Gravel
          Weight 1490g - 56cm (frame-only, painted)
          580g (fork-only, painted)
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
          Max chainring size 1x: 44T (SRAM), 50T (Shimano), 2x: 50/34
          Skewer front Bontrager Switch thru axle, removable lever
          Skewer rear Bontrager Switch thru axle, removable lever
          Max tire size See service manual
          Rotor size Max brake rotor sizes: 160mm front & rear
