Checkpoint ALR 5 AXS

490.00
2352.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Features

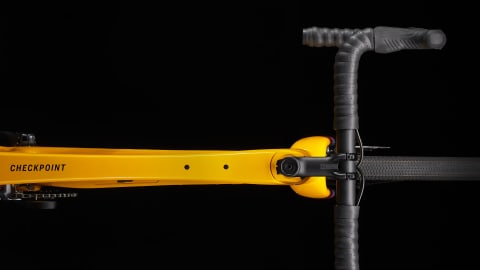

          New progressive geometry

          For quick, nimble handling that still keeps you stable and in control on rougher descents.

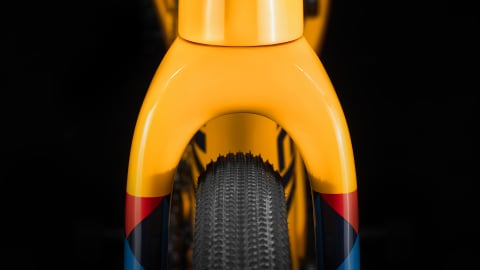

          Tire clearance

          Lots of clearance means you can run meatier tires (700x45mm or 27.5x2.1") for tackling chunkier gravel and terrain.

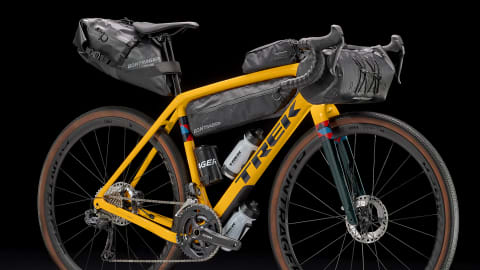

          Tons of mounts

          Integrated frame bag and fender mounts make it easy to carry gear and water.

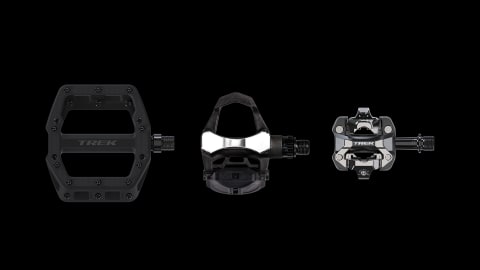

          Don’t forget your pedals

          This bike doesn’t come with pedals because you’ll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style.

          Specs

          Frame with Fork 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
          Fork Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
          Weight 56 - 9.75 kg / 21.5 lbs (with TLR sealant, no tubes)
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
          *Shifter Size:49, 52, 54, 56, 58, 61
          SRAM Apex, 12 speed
          Size:49, 52, 54, 56, 58, 61
          SRAM Apex AXS, 12 speed
          Rear derailleur SRAM Apex XPLR eTap AXS, 44T max cog
          *Crank Size:49
          SRAM Apex 1, 40T, DUB Wide, 165mm length
          Size:52
          SRAM Apex 1, 40T, DUB Wide, 170mm length
          Size:54, 56
          SRAM Apex 1, 40T, DUB Wide, 172.5mm length
          Size:58, 61
          SRAM Apex 1, 40T, DUB Wide, 175mm length
          Bottom bracket SRAM DUB, T47 threaded, internal bearing
          Cassette SRAM PG-1230, 11-44, 12 speed
          Chain SRAM Apex, 12 speed
          Hub front Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
          Skewer front Bontrager Switch thru axle, removable lever
          Hub rear Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
          Skewer rear Bontrager Switch thru axle, removable lever
          Rim Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve
          Tire Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm
          Tire part Bontrager TLR sealant, 6oz
          Rim strip Bontrager TLR
          *Saddle Size:49, 52
          Bontrager Verse Comp, steel rails, 155mm width
          Size:54, 56, 58, 61
          Bontrager Verse Comp, steel rails, 145mm width
          Seatpost Easton EA70 AX, 27.2mm, 0mm offset, 50mm travel
          *Handlebar Size:49
          Bontrager Elite Gravel, 38cm width
          Size:52
          Bontrager Elite Gravel, 40cm width
          Size:54, 56
          Bontrager Elite Gravel, 42cm width
          Size:58, 61
          Bontrager Elite Gravel, 44cm width
          Handlebar tape Bontrager Supertack Perf tape
          *Stem Size:49
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
          Size:52, 54
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
          Size:56, 58
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
          Size:61
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
          Brake SRAM Apex hydraulic disc, flat mount
          Brake rotor SRAM Paceline, rounded, centerlock, 160mm
