          Features

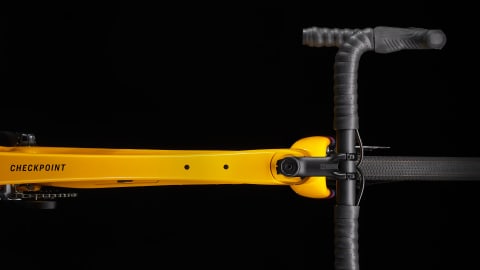

          New progressive geometry

          For quick, nimble handling that still keeps you stable and in control on rougher descents.

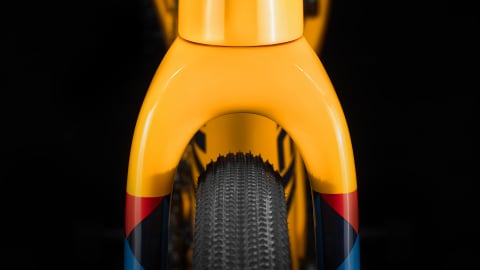

          Tire clearance

          Lots of clearance means you can run meatier tires (700x45mm or 27.5x2.1") for tackling chunkier gravel and terrain.

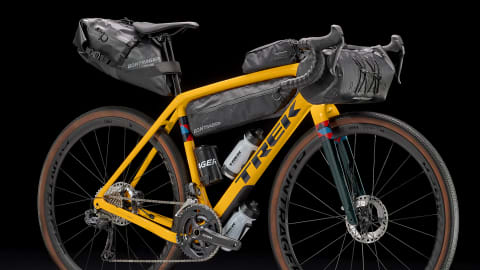

          Tons of mounts

          Integrated frame bag and fender mounts make it easy to carry gear and water.

          Shimano GRX

          Shimano GRX was designed from the ground up for gravel adventure. With its gravel-specific ergonomics, optimized gearing options, rugged reliability, and quiet, stable drivetrain, GRX sets itself apart from the rest of the component world.

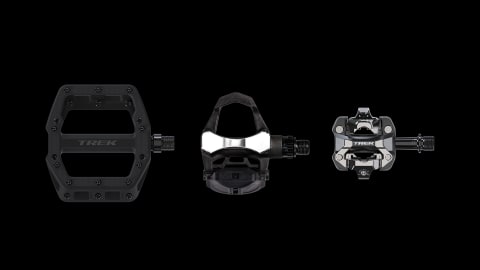

          Don’t forget your pedals

          This bike doesn’t come with pedals because you’ll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style.

          Specs

          Frame 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
          Frame with Fork 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
          Fork Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
          Frame fit Gravel
          Weight 56 - 9.75 kg / 21.5 lbs
          Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
          Shifter Shimano GRX RX600, 11 speed
          Front derailleur Shimano GRX RX810, braze-on
          Rear derailleur Shimano GRX RX810, long cage, 34T max cog
          *Crank Size:49
          Shimano GRX RX600, 46/30, 165mm length
          Size:52
          Shimano GRX RX600, 46/30, 170mm length
          Size:54, 56
          Shimano GRX RX600, 46/30, 172.5mm length
          Size:58, 61
          Shimano GRX RX600, 46/30, 175mm length
          Bottom bracket Praxis, T47 threaded, internal bearing
          Cassette Shimano 105 HG700-11, 11-34, 11 speed
          Chain Shimano HG601, 11 speed
          Max chainring size 1x: 44T (SRAM), 50T (Shimano), 2x: 50/34
          Wheel front Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples
          Wheel rear Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples
          Hub front Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
          Skewer front Bontrager Switch thru axle, removable lever
          Hub rear Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
          Skewer rear Bontrager Switch thru axle, removable lever
          *Rim Size:49, 52, 54, 56, 58, 61
          Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve
          Size:49, 52, 54, 56, 58, 61
          Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
          Spokes 14g stainless steel, black
          Tire Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm
          Tire part Bontrager TLR sealant, 6oz
          Rim strip Bontrager TLR
          Max tire size See service manual
          *Saddle Size:49, 52
          Bontrager Verse Comp, steel rails, 155mm width
          Size:54, 56, 58, 61
          Bontrager Verse Comp, steel rails, 145mm width
          Seatpost Bontrager alloy, 27.2mm, 12mm offset, 330mm length
          *Handlebar Size:49
          Bontrager Elite Gravel, 38cm width
          Size:52
          Bontrager Elite Gravel, 40cm width
          Size:54, 56
          Bontrager Elite Gravel, 42cm width
          Size:58, 61
          Bontrager Elite Gravel, 44cm width
          Handlebar tape Bontrager Supertack Perf tape
          *Stem Size:49
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
          Size:52, 54
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
          Size:56, 58
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
          Size:61
          Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
          Brake Shimano RX400 hydraulic disc, flat mount
          Brake rotor Shimano RT70, centerlock, 160mm
          Rotor size Max brake rotor sizes: 160mm front & rear
