Features
A Flare for Gravel
The GR Elite is a drop-bar handlebar designed for the gravel and adventure rider, with features to maximize control and confidence in rough terrain and deliver comfort for even the longest efforts.

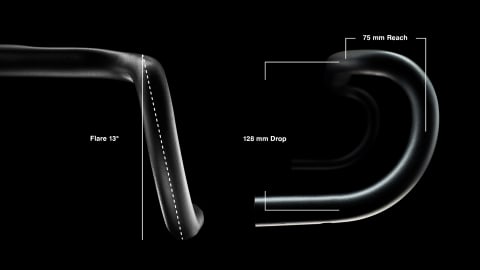

Adventure Fit
A 75mm reach better fits the longer frames of modern gravel bikes, and a 128mm drop and 13-degree flare allow easy access to brake and shifting controls.

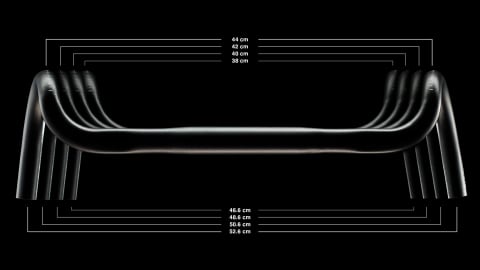

Confidence in the drops
A 13-degree flare makes the bar wider at the drops, giving you more stability and the confidence to carry your speed through technical sections and take control of demanding descents.

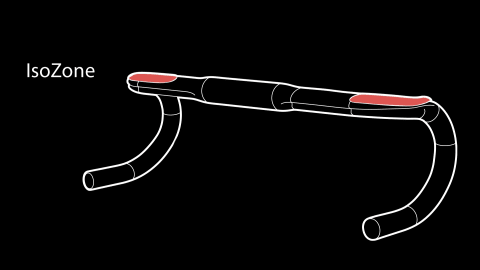

Long-lasting comfort
Integrated IsoZone EVA pads provide additional compliance in key hand positions while maintaining original grip diameter, delivering reliable comfort through even the roughest of roads.

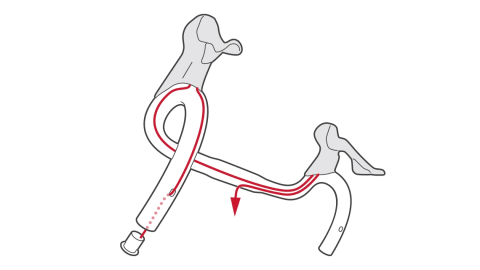

Bar-end Di2 junction box compatible
Keep your cockpit clean by using Shimano's EW-RS910 bar end junction box for the refined look that your bike deserves.
Specs
Size | 380mm/465mm | 400mm/485mm | 420mm/505mm | 440mm/525mm |
---|---|---|---|---|
Hood width | 380mm | 400mm | 420mm | 440mm |
Drop width | 465mm | 485mm | 505mm | 525mm |
Clamp | 31.8mm | 31.8mm | 31.8mm | 31.8mm |
Bend | VR-SF | VR-SF | VR-SF | VR-SF |
Drop | 128mm | 128mm | 128mm | 128mm |
Drop flare | 13 deg. | 13 deg. | 13 deg. | 13 deg. |
Reach | 75mm | 75mm | 75mm | 75mm |
Cable routing | External | External | External | External |
Material | Aluminum | Aluminum | Aluminum | Aluminum |
Weight | 306g | 314g | 322g | 330g |
